Figure 1

From: Magnetic field coupling with lunar soil simulants

Figure 1

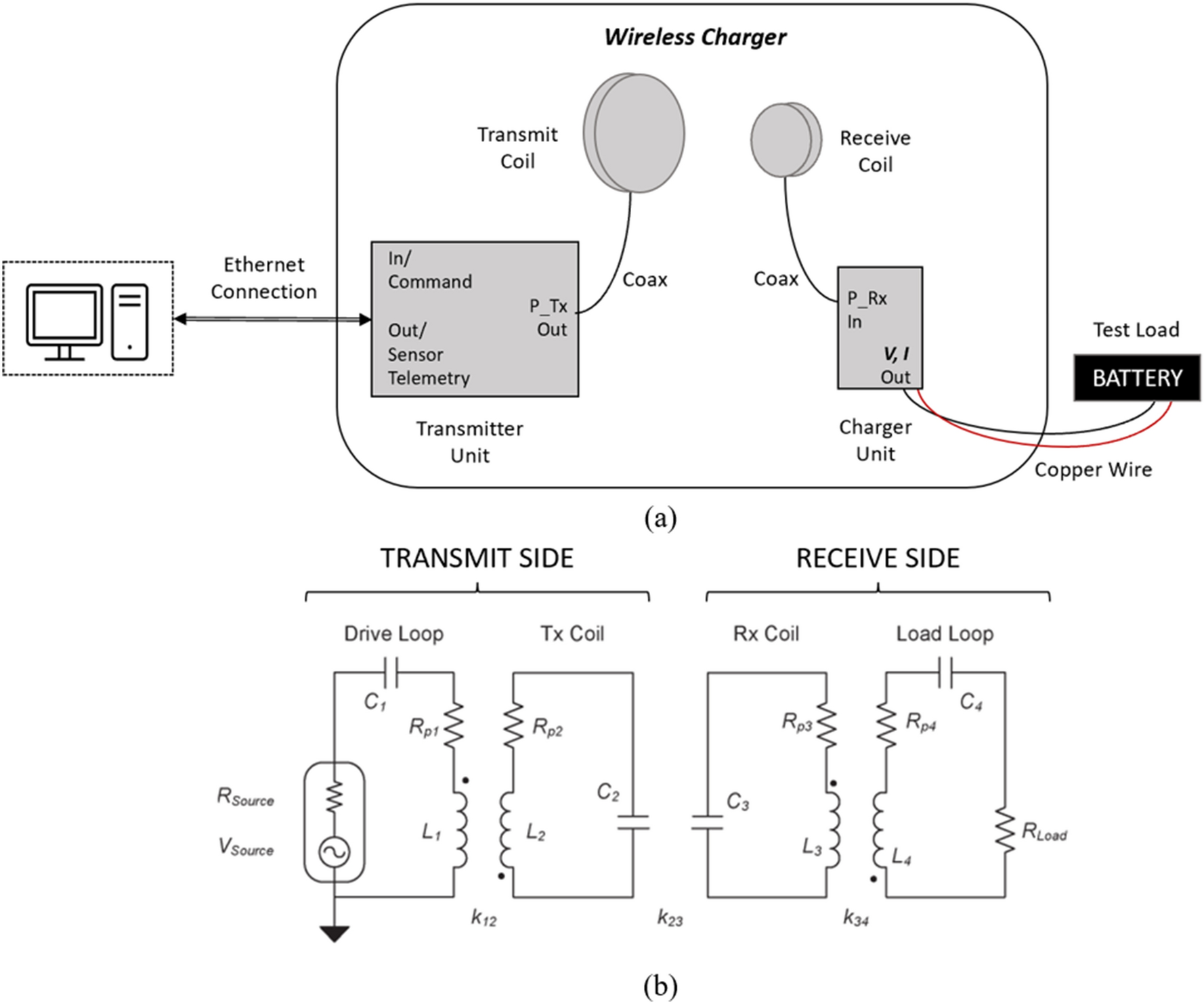

(a) Schematic of a typical MCR-based WPT system using a transmitter unit, charger unit, and resonant coils to charge a battery test load. (b) Equivalent circuit model of system. Transmit and receive side each consist of a single-turn loop plus a multi-turn loop. All elements are resonant and coupled magnetically1.
