Figure 6

From: Drosophila mutants lacking the glial neurotransmitter-modifying enzyme Ebony exhibit low neurotransmitter levels and altered behavior

Figure 6

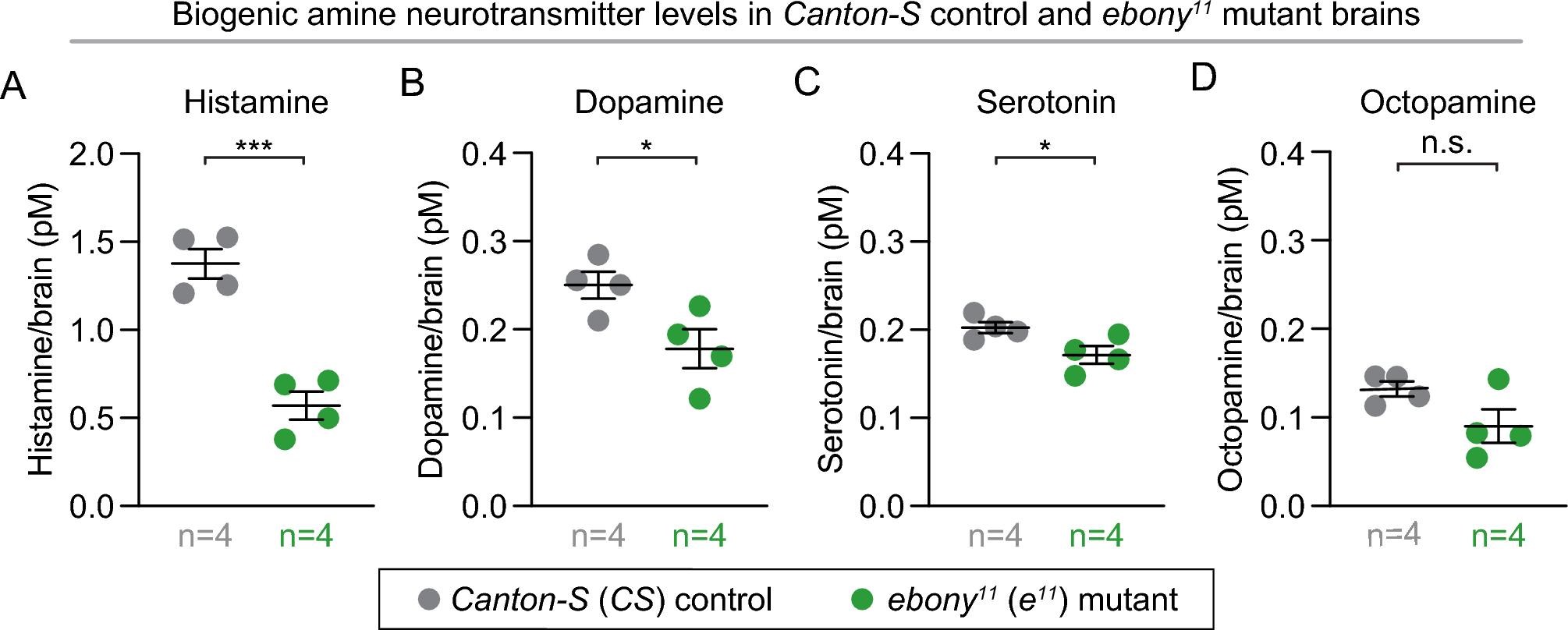

ebony mutant brains have decreased neurotransmitter levels relative to controls. (A–D) Each graph shows average neurotransmitter levels per brain of ebony mutants (green) and control flies (gray), measured by HPLC/MS (n = number of biological replicates, each consisting of 50 dissected brains with intact lamina). Relative to controls, ebony mutants had: (A) decreased histamine (p = 0.0004); (B) decreased dopamine (p=0.0410); (C) decreased serotonin (p = 0.0457); and (D) similar octopamine levels (p = 0.1084). p-values were obtained by unpaired Student’s t-test with Welch’s correction. Averages are shown with error bars representing SEM. (See Table S1 for n and statistical analysis for each experiment; n.s.= p > 0.05, * = p < 0.05, *** = p < 0.001.)
