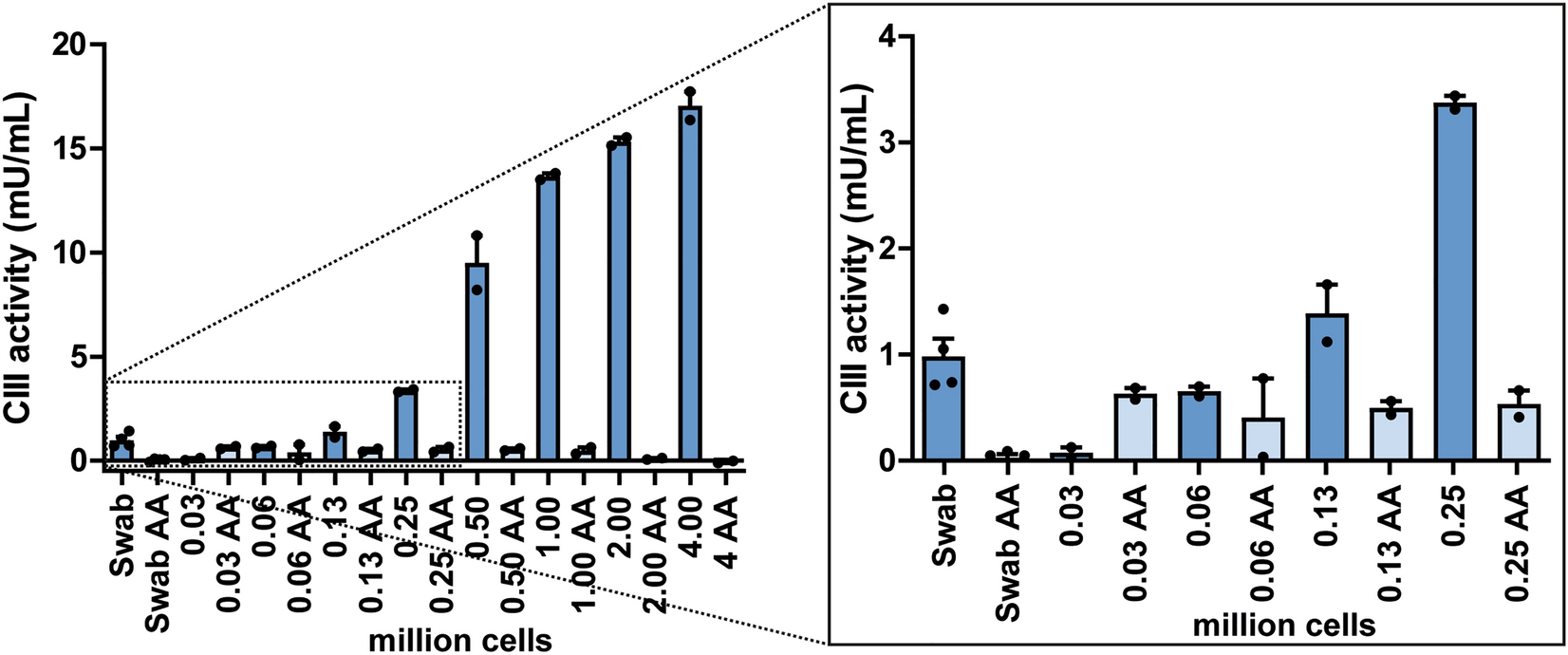

Figure 1

CIII activity in dilution series of HeLa cells compared to buccal swab samples from a non-CIII deficient person based on lack of symptoms. The CIII activity expressed in mU mL⁻¹; mean ± SEM with individual data points plotted. The dilution series for HeLa cells are from one vial, the number of cells (in millions) depicted on the x-axis. One sample of four swabs was used as mentioned before. AA (antimycin A, light blue) was the inhibited or basal cytochrome C reduction capacity for each condition. If the concentration-dependent curve reached plateau, measurements were considered equal to background (= around 62,500 cells).
