Figure 11
From: Engineering-geological comparative analysis of four cases studies of waste landfills

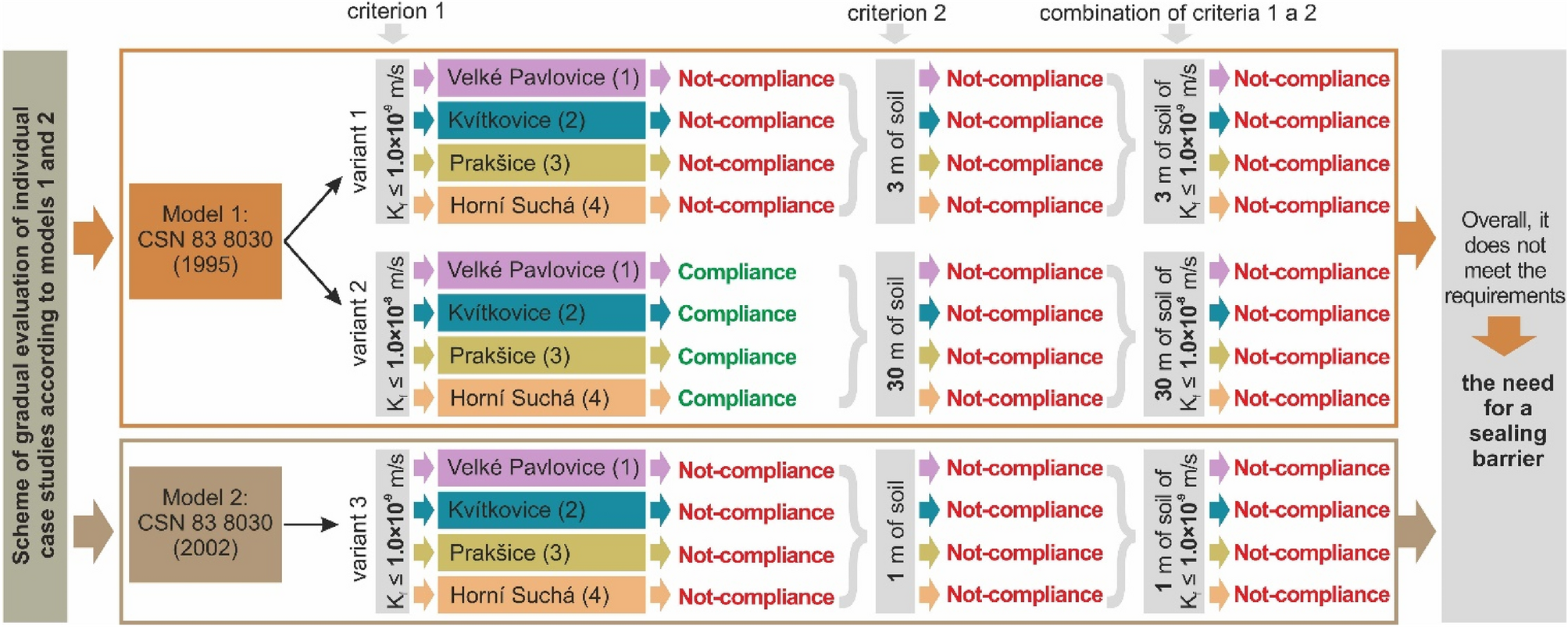

Diagram of assessment criteria to evaluate the tightness of the geological environment (natural geological barrier) for the purposes of establishing landfills in 4 localities (no. 1 Velké Pavlovice, no. 2 Kvítkovice, no. 3 Prakšice and no. 4 Horní Suchá) and final assessment (all 4 case studies do not meet the criteria and an anthropogenic barrier must be installed).
