Figure 5 | Scientific Reports

Figure 5

From: Exploring the role and mechanism of Astragalus membranaceus and radix paeoniae rubra in idiopathic pulmonary fibrosis through network pharmacology and experimental validation

Figure 5

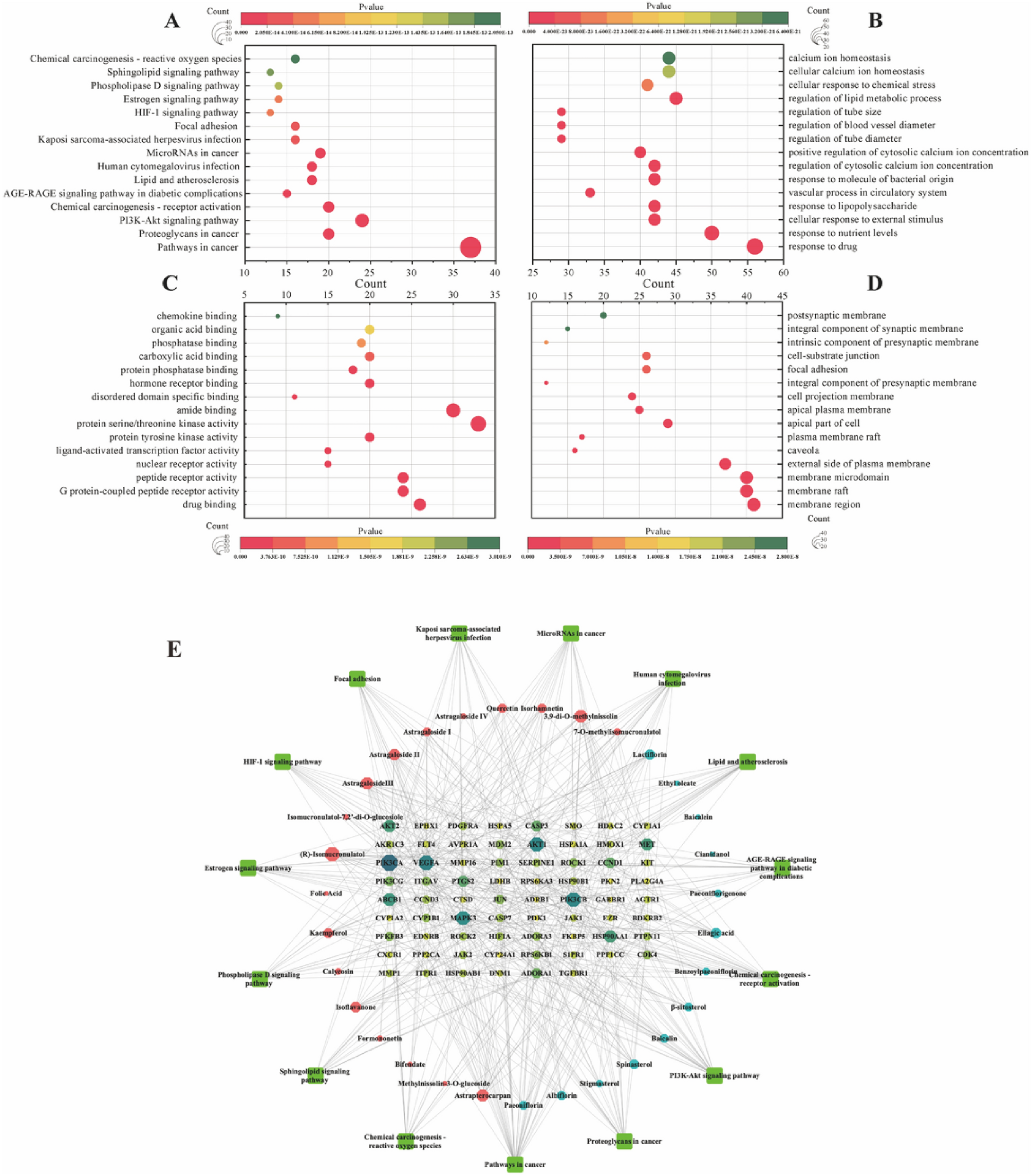

(A) KEGG analysis.33,34,35 (B) GO-BP analysis. (C) GO-MF analysis. (D) GO-CC analysis. (E) CTP network. The outer circle of the network represents the top 15 pathways; the inner circle represents components of AM and RPR that are related to genes enriched in these pathways; the innermost grid layout represents each target gene. Greater size of nodes represents higher degree value.
