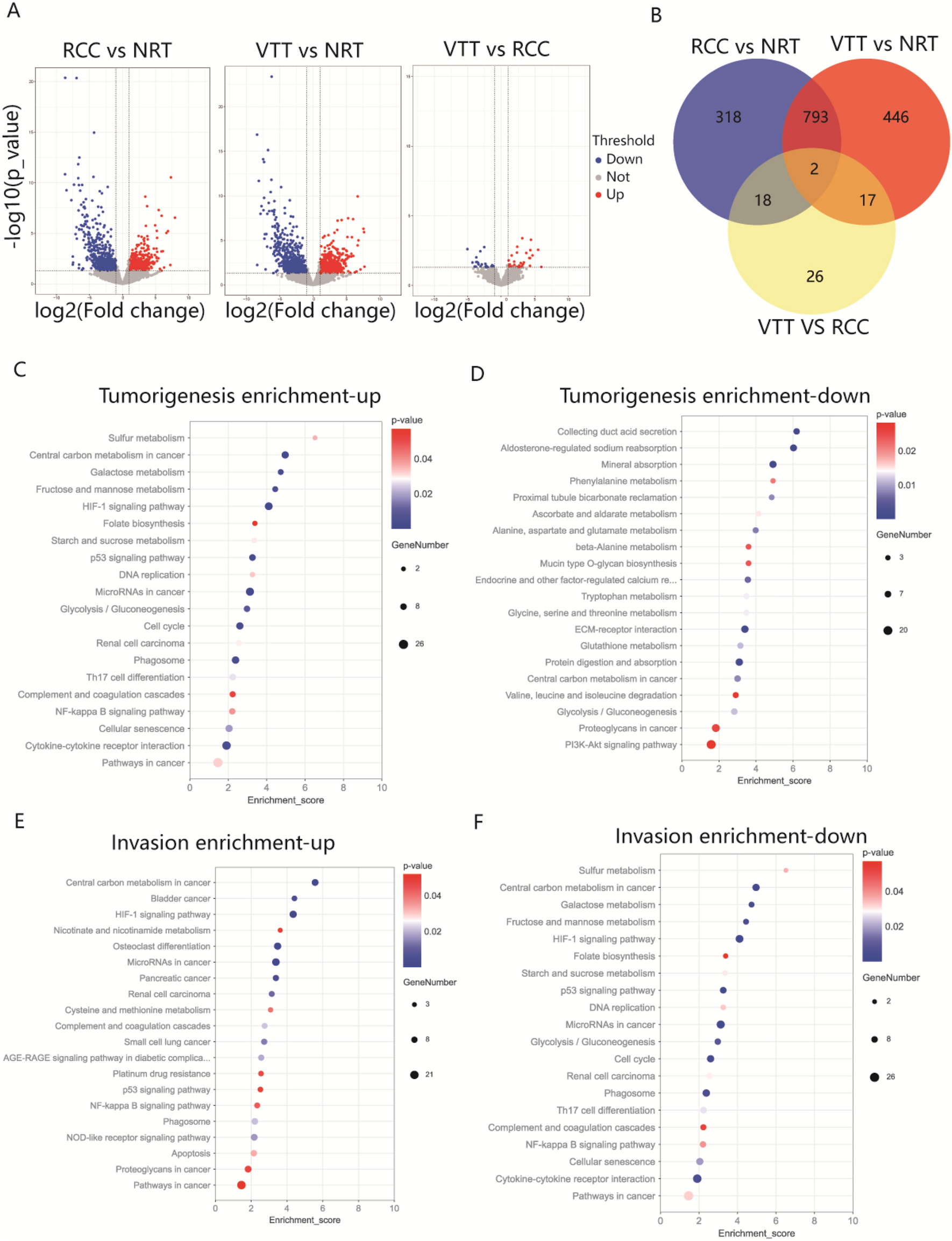

The transcriptomic data of ccRCC associated with VTT. (A) Volcano plots of all DEGs in transcriptome analysis of normal, tumor and thrombus tissue. (B) Venn diagram to illustrate the overlap of DEGs in different comparisons. (C, D) KEGG pathway annotation of the tumorigenesis-associated genes. (E, F) KEGG pathway annotation of the invasion-associated genes.
