Figure 1 | Scientific Reports

Figure 1

From: Near-surface termination of upward-propagating strike-slip ruptures on the Yangsan Fault, Korea

Figure 1

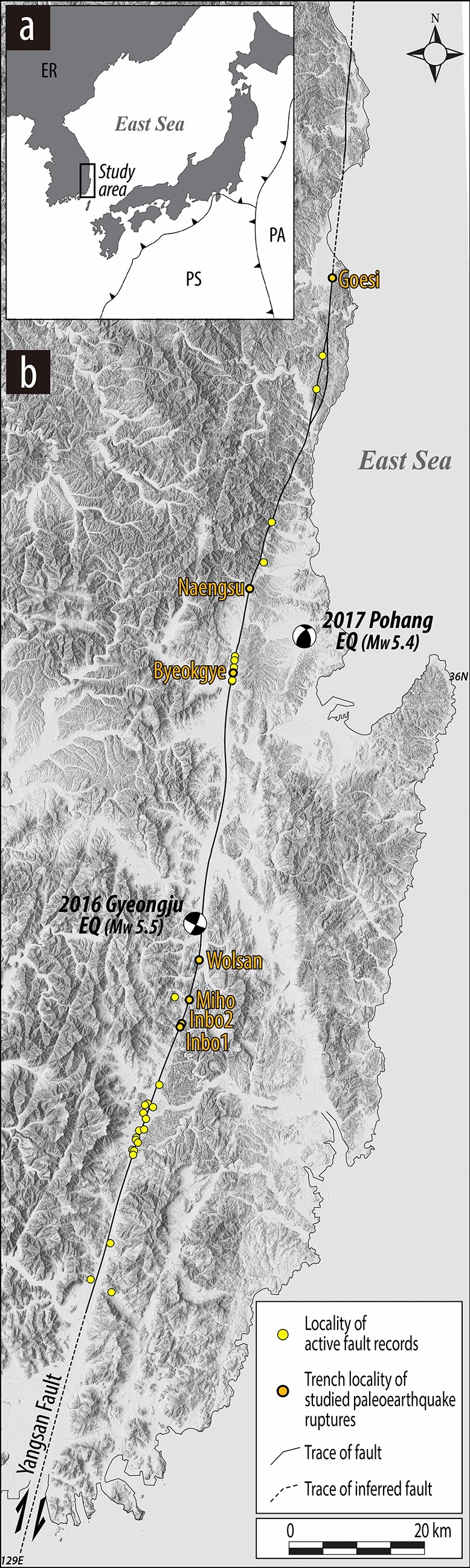

(a) Map of the present-day tectonic configuration in East Asia. PA: Pacific Plate, PS: Philippine Sea Plate, ER: Eurasia Plate. (b) Map of the Yangsan Fault and locations of Quaternary faulting observations along the fault. A digital elevation model was generated from digitizing topographic maps (1:25,000) from Korean National Spatial Data Infrastructure Portal (http://www.nsdi.go.kr/lxportal/) by using QGIS 3.28.5.
