Figure 3
From: Transcriptomics-driven drug repositioning for the treatment of diabetic foot ulcer

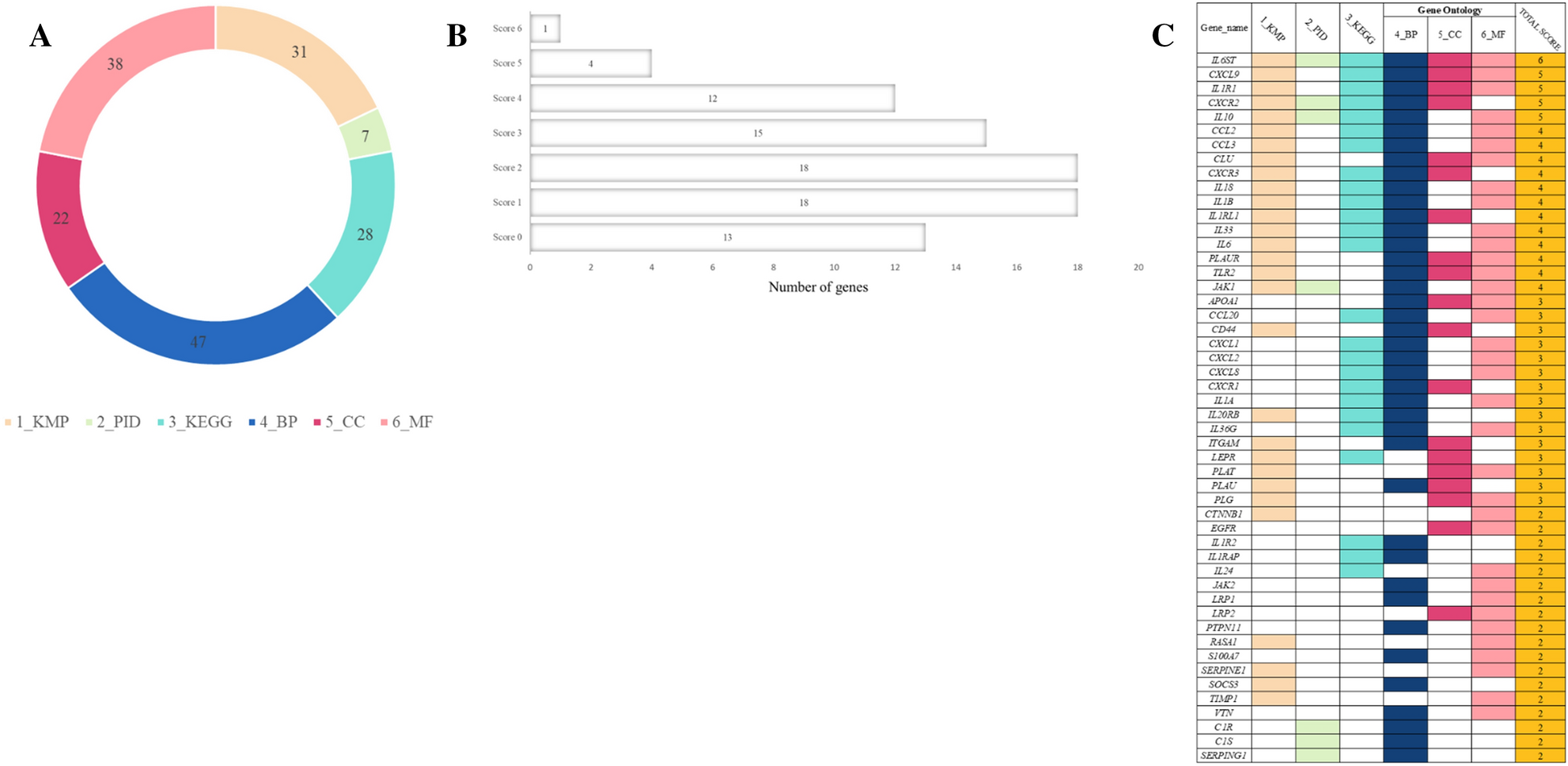

Prioritizing biological risk genes for diabetic foot ulcer (DFU) using a scoring system based on functional annotations. (A) A diagram pie chart shows the distribution score in each functional annotation for all 6 annotations. (B) An overview of gene score distribution for the 6 functional annotations. (C) Satisfied criteria for 50 biological DFU risk genes with a score of two or higher were indicated by the colors across each of the 6 functional annotations. A white box indicates the lack of functional annotations.
