Figure 6
From: FEM analysis of a new three-way drainage and pressure reduction system for road tunnels

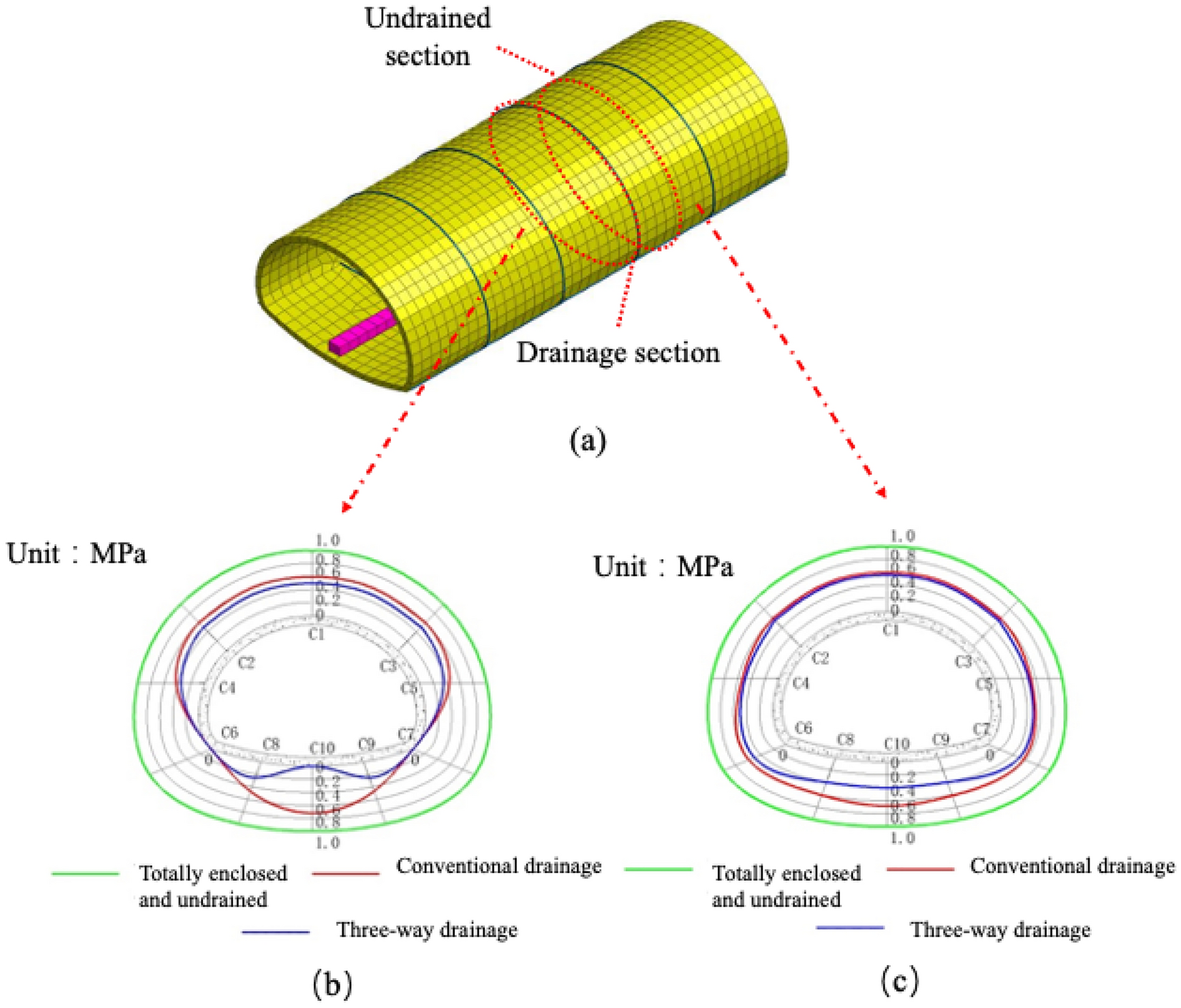

The envelope diagram of external water pressure should be listed as follows: (a) Monitoring section; (b) water pressure at the drainage section; (c) water pressure at the drainage section.
