Figure 2
From: Polarization-controlled nonlinear computer-generated holography

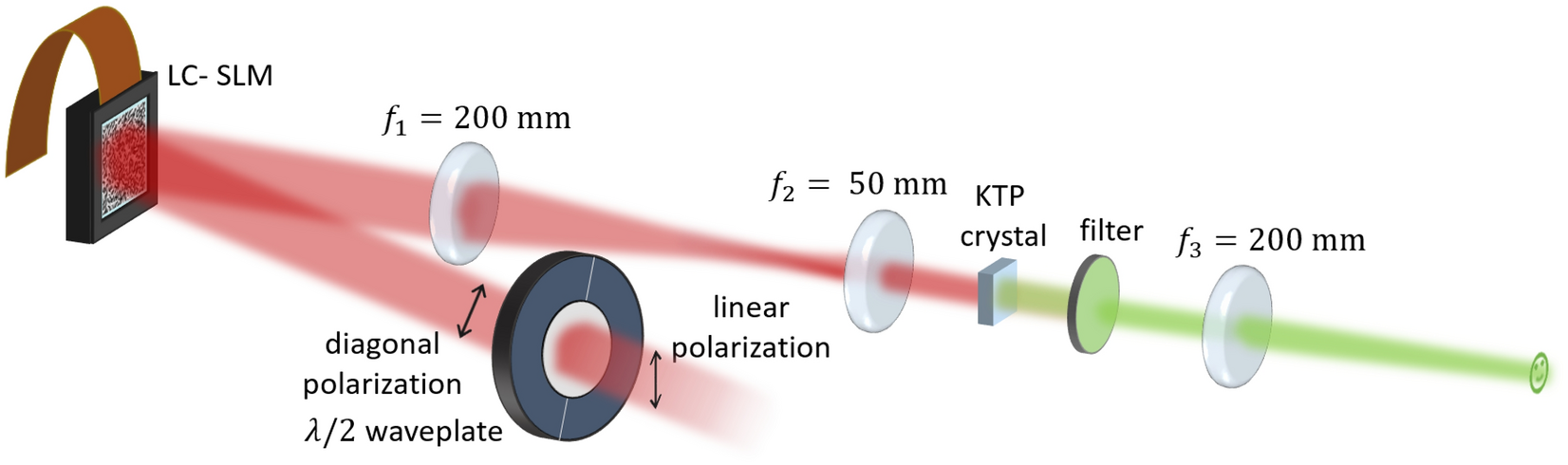

Setup for nonlinear beam shaping: the polarization-sensitive LC-SLM shapes only half of the light field. The plane of the SLM is imaged into the nonlinear KTP crystal and the unshaped and shaped field components combine during nonlinear conversion and form the target structure.
