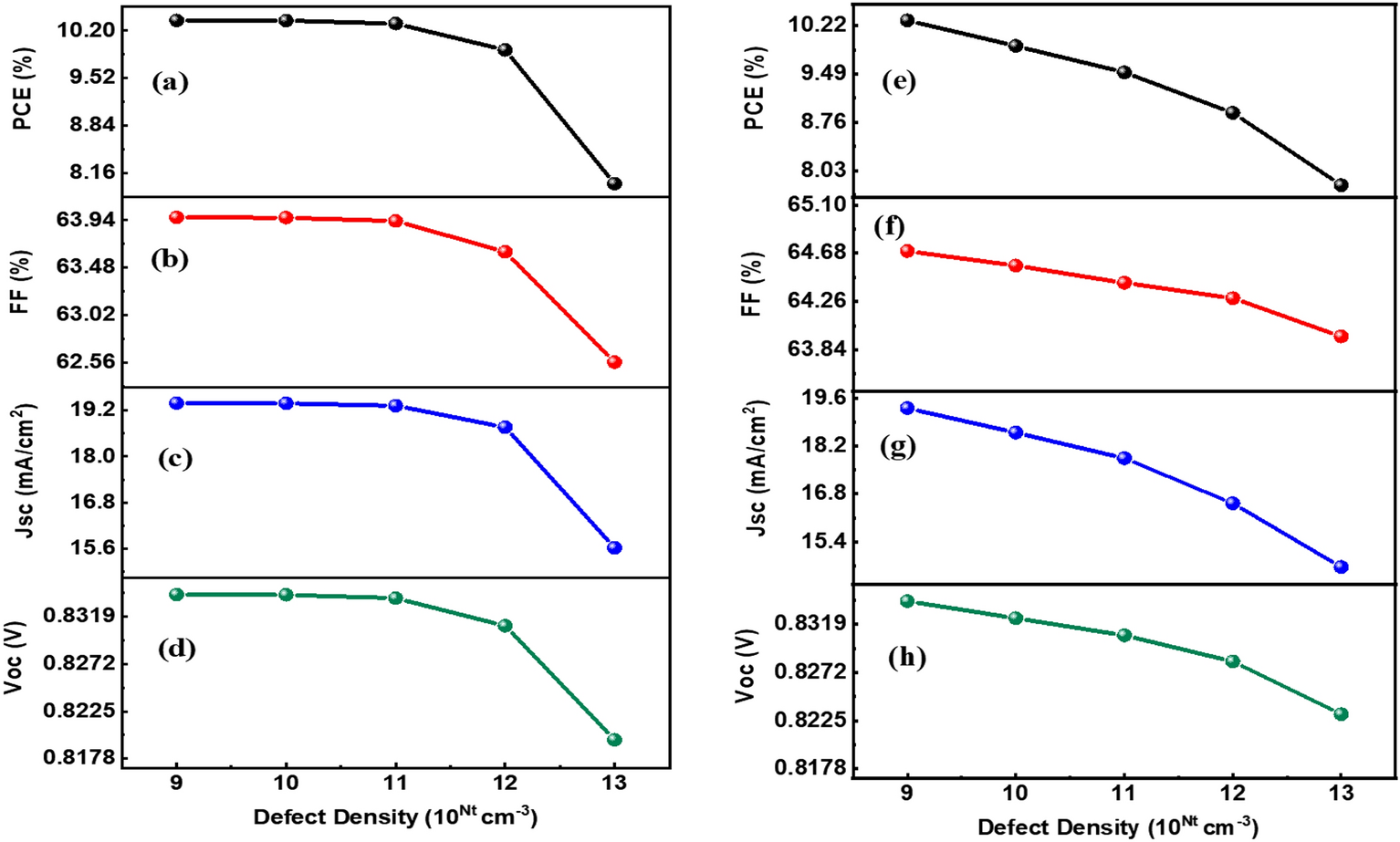

Figure 10
From: Numerical optimization and performance evaluation of ZnPC:PC70BM based dye-sensitized solar cell
Parameters in relation to defect density of HTL layer (left panels): (a) PCE, (b) FF, (c) Jsc, and (d) Voc. Parameters in relation to defect density of ETL layer (right panels): (e) PCE, (f) FF, (g) Jsc, and (h) Voc.
