Figure 3
From: Numerical optimization and performance evaluation of ZnPC:PC70BM based dye-sensitized solar cell

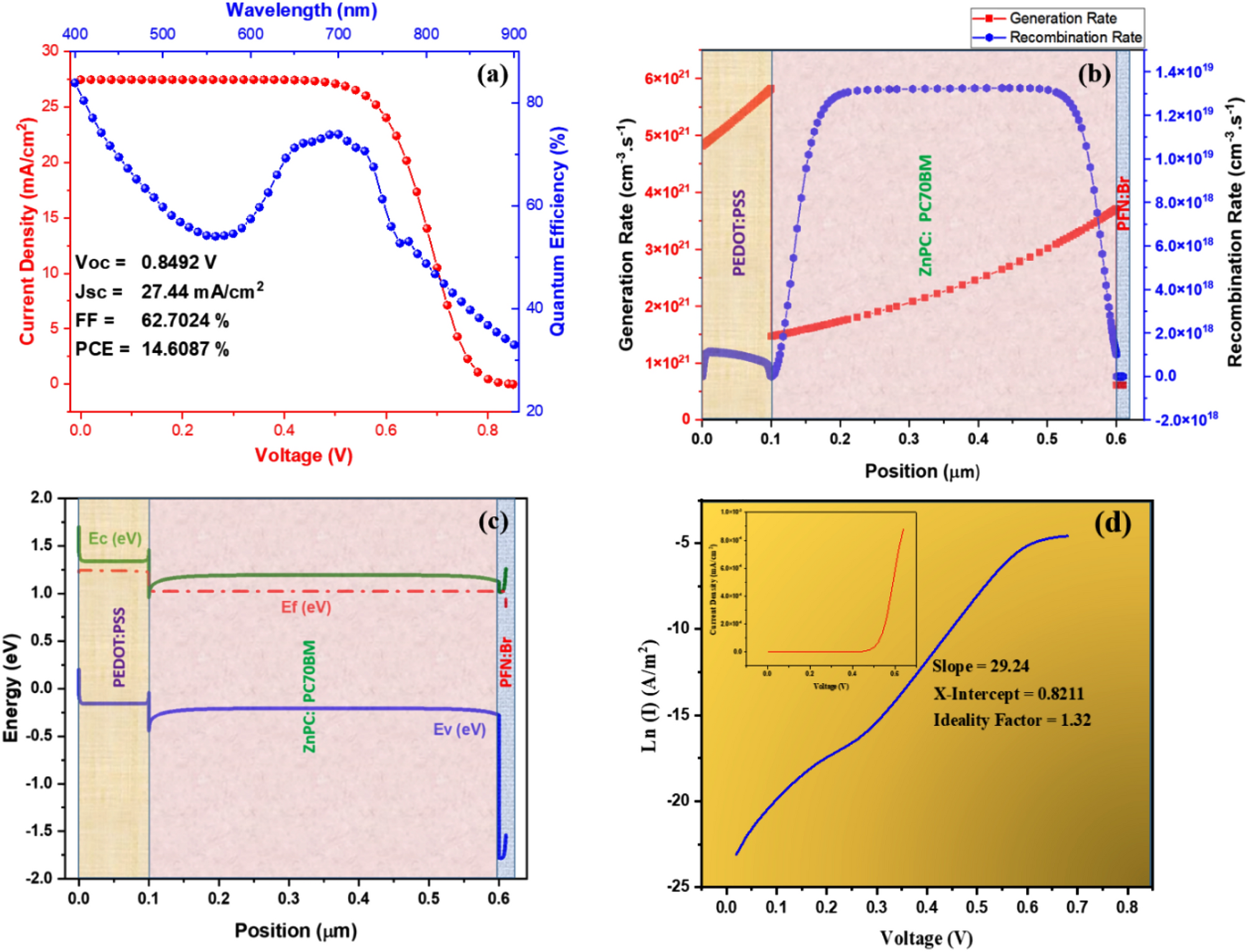

(a) J–V and QE curve of the intended device (b) Generation and recombination rate of photogenerated carriers in device (c) Energy band structure of purposed device, and (d) Ln (I) vs voltage with an inset representing dark J–V measurement.
