Figure 3
From: CT imaging shows specific pancreatic abnormalities in persons with cystic fibrosis related diabetes

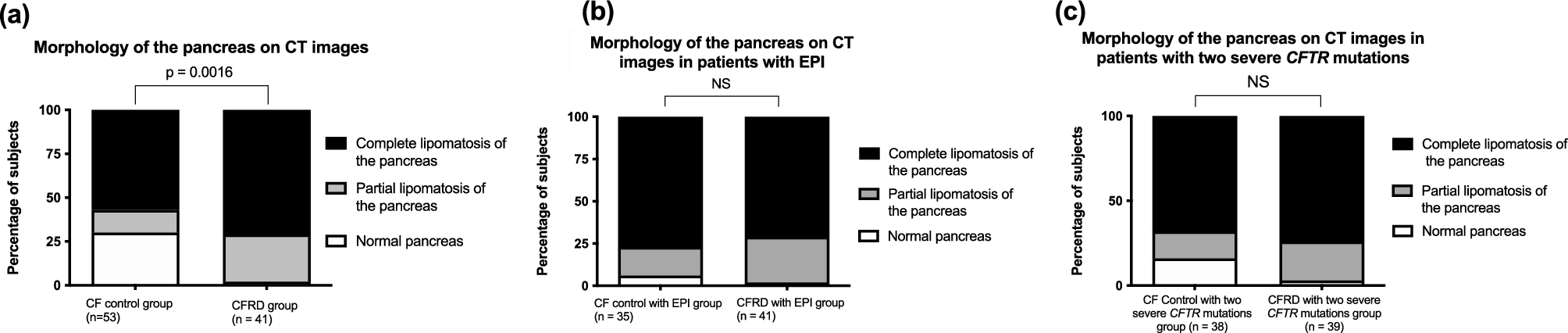

Morphology of the pancreas on CT images in participants with CF without CFRD (CF control group) or with CFRD (CFRD group) (a) Comparison between the participants from the CF control and the CFRD group (b) Comparison between the participants from the CF control subgroup who presented with EPI (control with EPI group) and the participants with CFRD. (c) Comparison between the participants from the CF control and CFRD subgroups who presented with 2 severe mutations of CFTR. EPI: exocrine pancreatic insufficiency. Black: complete lipomatosis of the pancreas. Grey: partial lipomatosis of the pancreas. White: normal pancreas.
