From: Neurophysiological mechanisms underlying the differential effect of reward prospect on response selection and inhibition

Figure 3

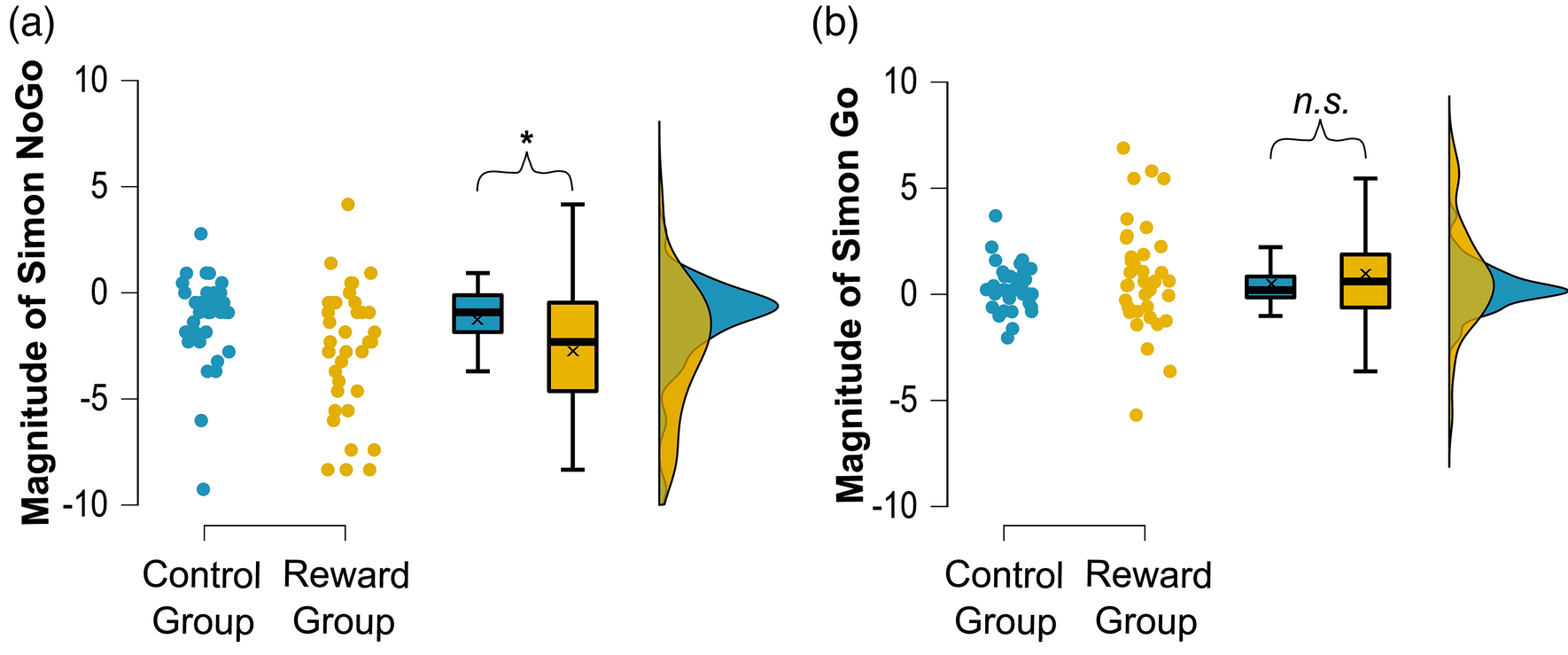

Behavioral results: Accuracy. The “x” and the horizontal line inside the boxplots indicate the mean and median, respectively. The asterisk indicates significant differences at p < .05, and the error bars represent the 95% confidence intervals. The raincloud plots illustrate the data distribution (a and b right side) and data points (a and b left side). (a) Magnitude of the Simon NoGo effect (correct congruent MINUS incongruent NoGo trials) based on the percentage of correct response omissions. (b) Simon Go Effect (correct congruent MINUS incongruent trials) based on the percentage of correct response executions.
