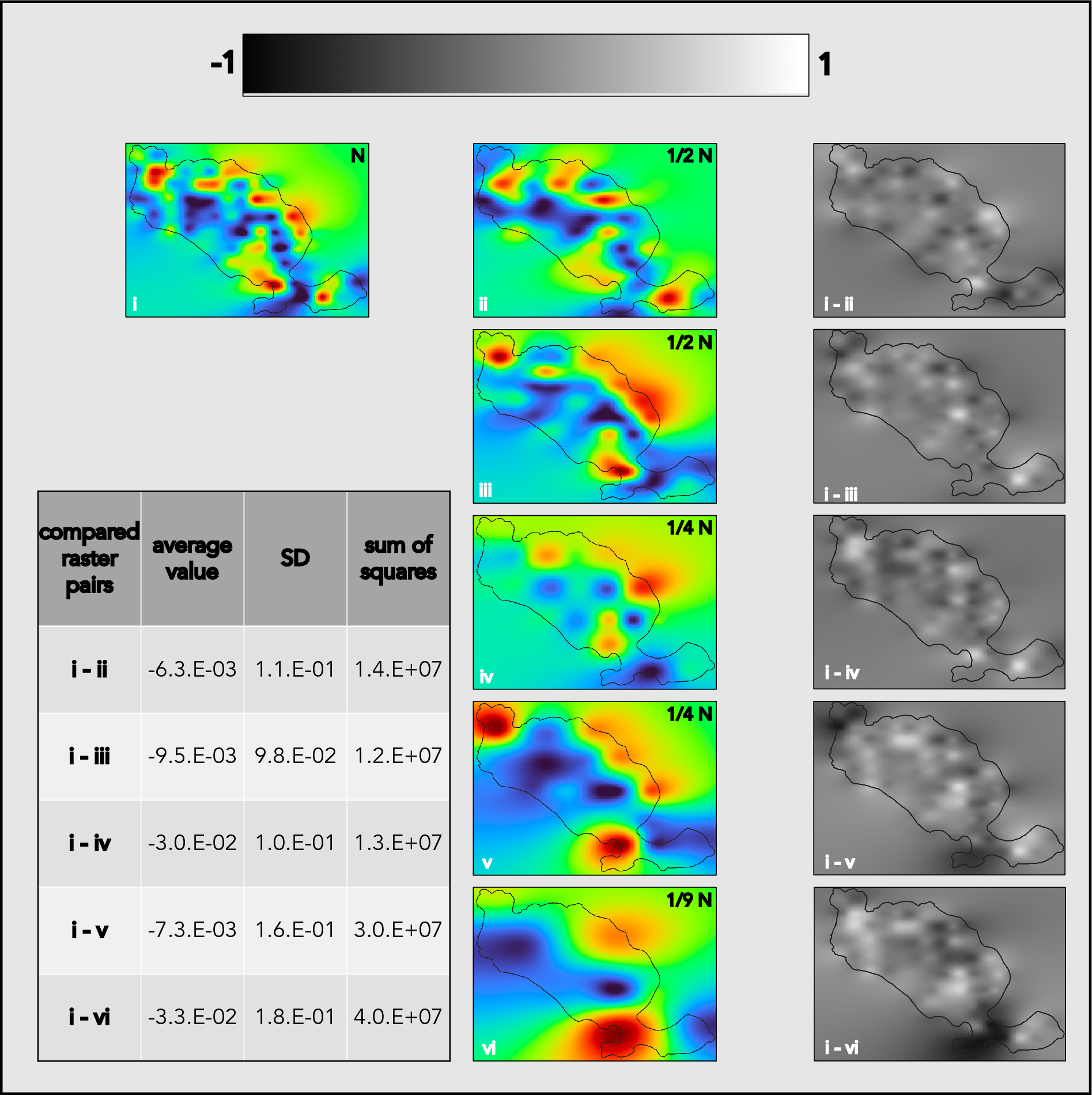

Figure 7
From: Landscape-scale mapping of soil fungal distribution: proposing a new NGS-based approach
Difference raster grids for the reduced sampling effort (RSE) simulations of the ectomycorrhizal (ECM) fungi distribution mapping. At each point of the raster grid, the values of RSE raster grids (ii–vi) were subtracted from the raster grid interpolated with all available data (i). In the difference raster grids, darker colors indicate underestimation and lighter colors overestimation of abundance in comparison to raster i. For each difference raster grid, its average value, standard deviation (SD), and sum of squares are listed.
