From: Simplified engineering geomorphic unit-based seismic site characterization of the detailed area plan of Dhaka city, Bangladesh

Figure 3

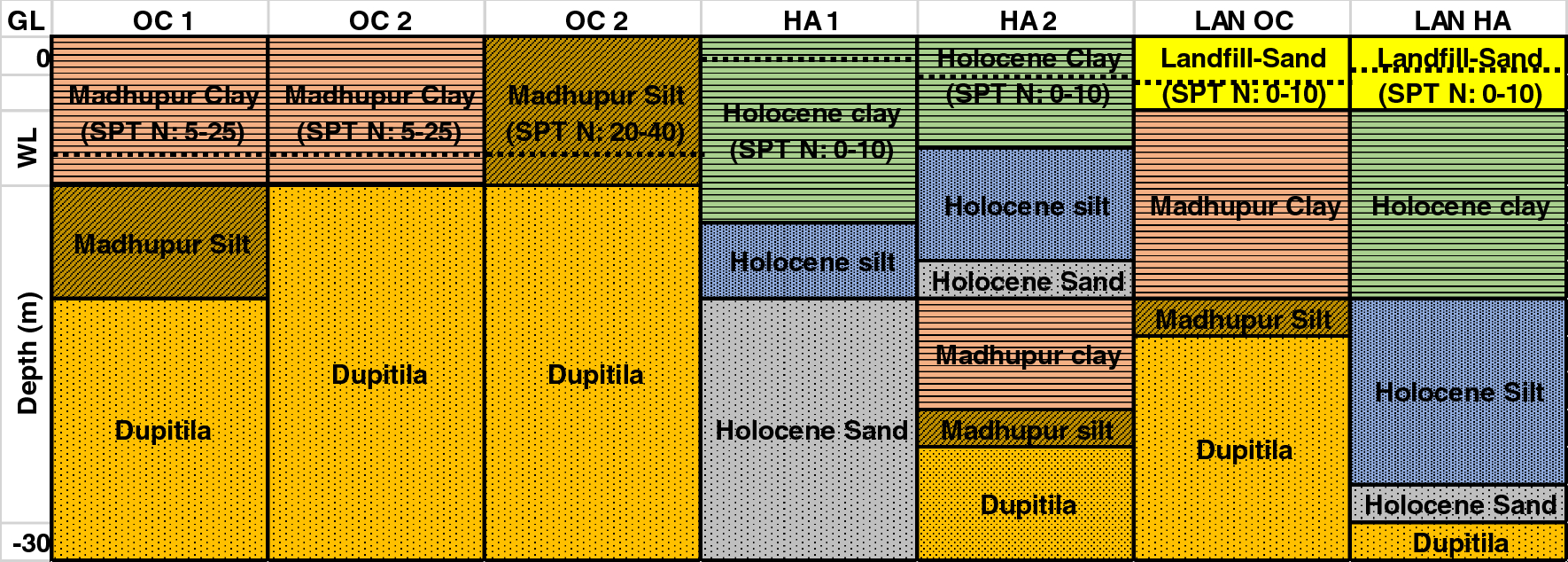

Soil profiles of OC, HA, LAN. The soil profiles of identified seven geomorphic sub-units of Dhaka city DAP are shown with each layer's average thickness. The OC soils consist of Madhapur clay, Madhapur silt, and Dupitila sand. The HA consists of Holocene clay, Holocene silt, and Holocene sand in some areas underlain by OC 1. The LAN unit with an average of 3 m filling materials underlain by HA or OC. The figure was prepared using Microsoft Excel.
