Figure 4
From: Ion mobility mass spectrometry for the study of mycobacterial mycolic acids

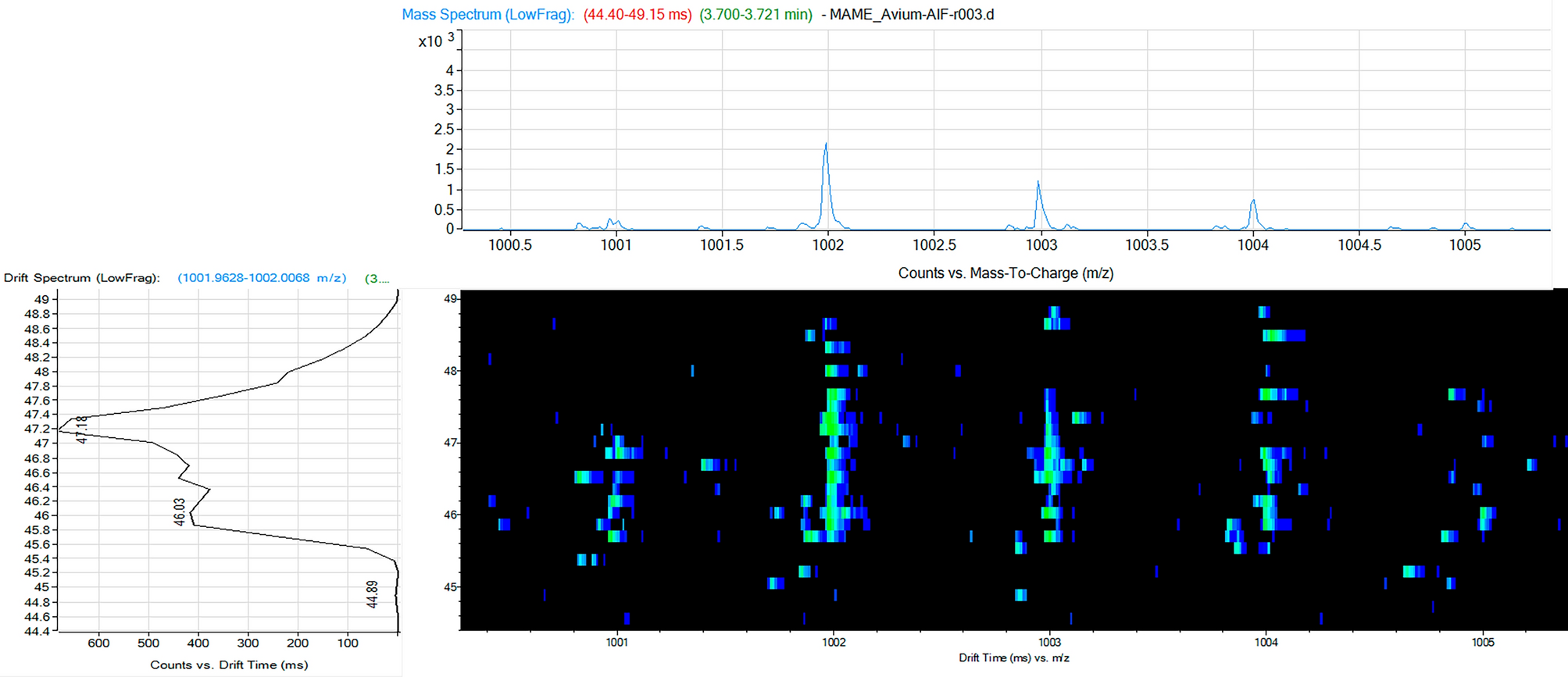

Selected example of a 2D IM-MS spectrum for carboxy mycolic acid methyl esters from M. avium showing separation of isobaric lipids. The top spectrum depicts the ion counts versus the mass-to-charge ratio (m/z), and the left spectrum depicts the drift spectrum in counts versus drift time (ms).
