From: Identification of hypoxia-related genes and exploration of their relationship with immune cells in ischemic stroke

Figure 7

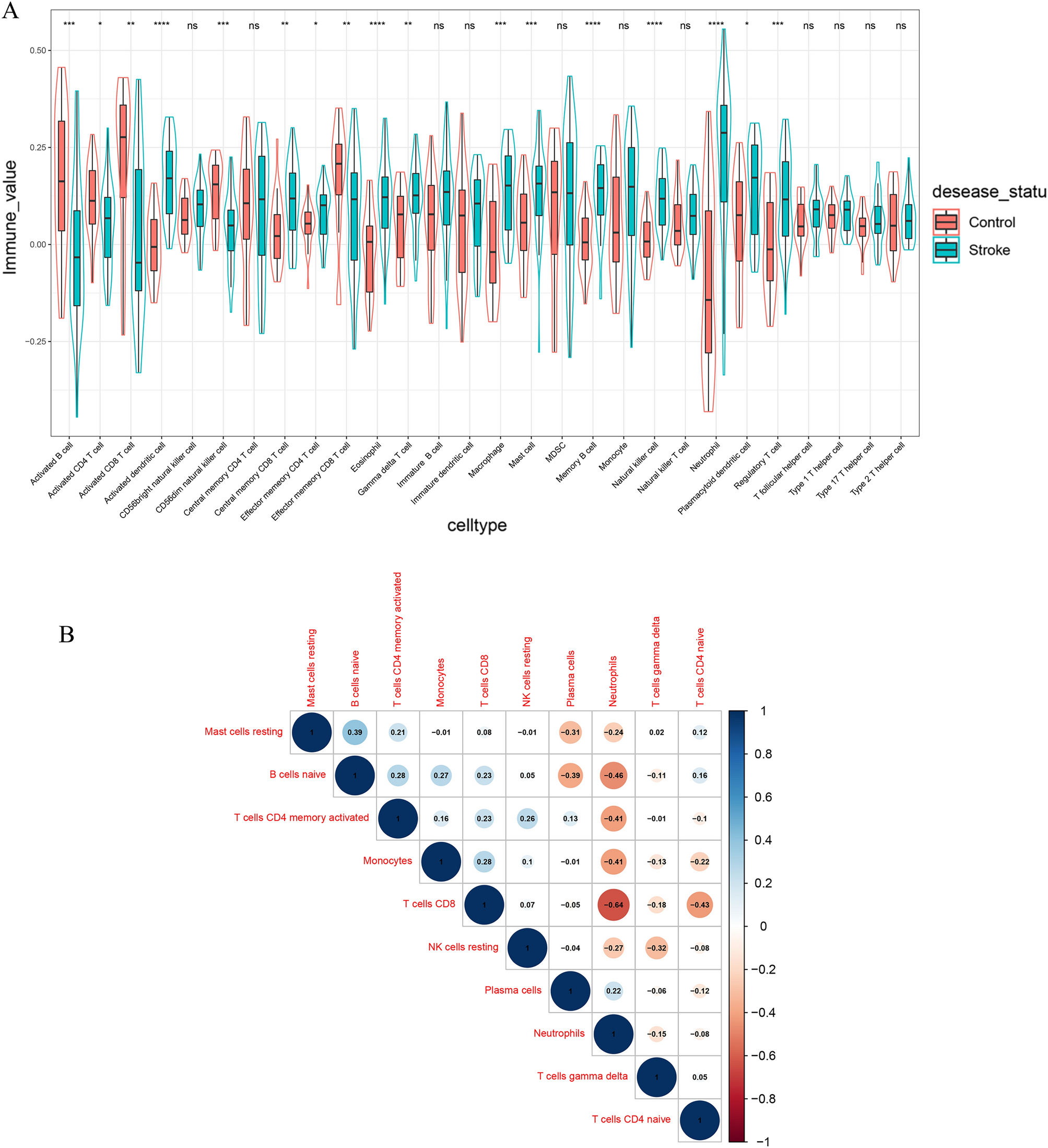

Correlation of infiltrating immune cells. (A) The violin plot exhibits the differences in CIBERSOFT immune cell fractions between IS and healthy controls. (B) Correlation heat map of immune cells. The size of the colored squares represents the strength of the correlation; blue represents a positive correlation, and red represents a negative correlation. The darker the color is, the stronger correlation is.
