Figure 5 | Scientific Reports

Figure 5

From: Specific and label-free endogenous signature of dystrophic muscle by Synchrotron deep ultraviolet radiation

Figure 5

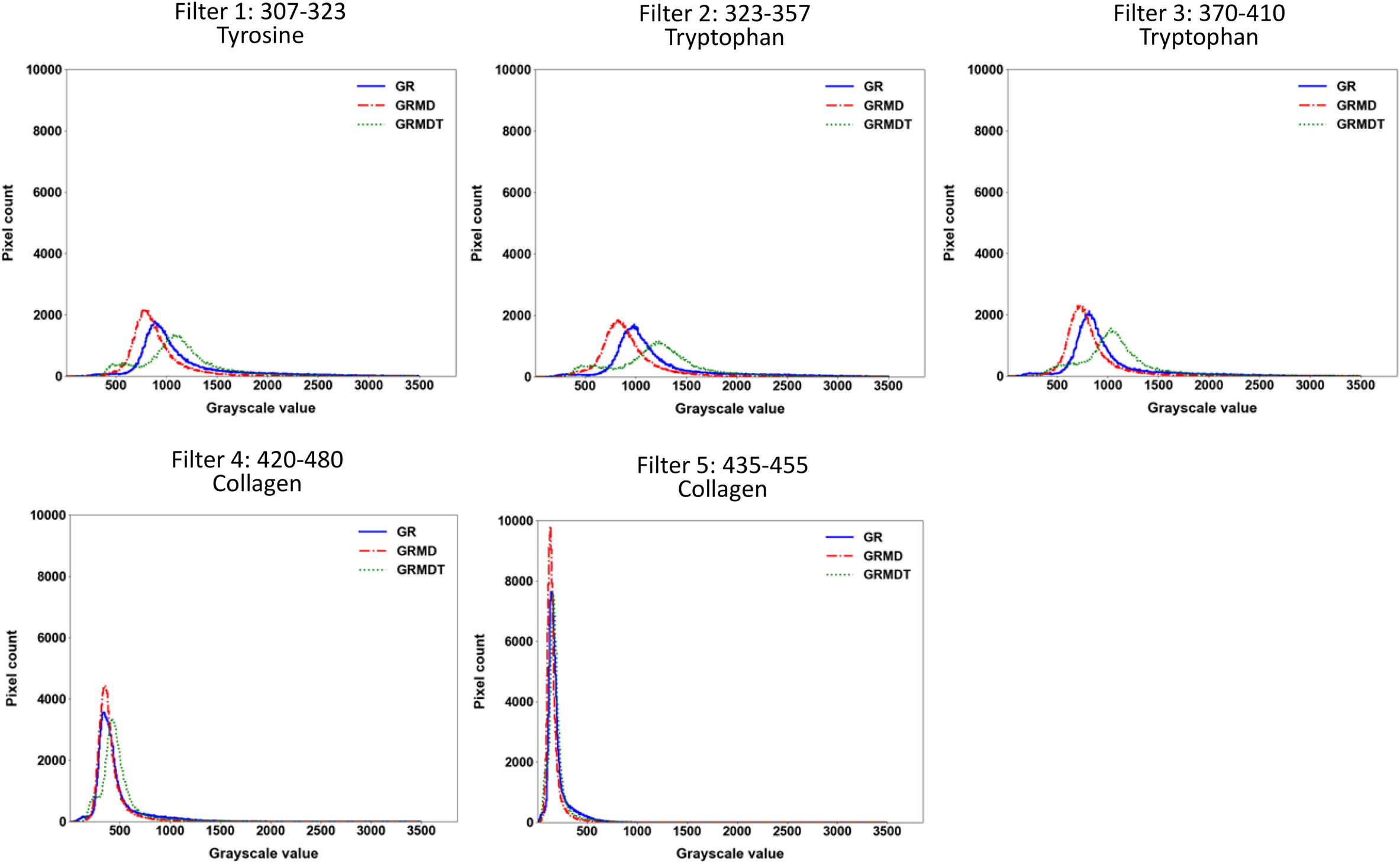

Complementary information representation of Synchrotron deep ultraviolet radiation according to filters. Aggregated histograms of the five filters (represented as an envelope curve of the bins, instead of the conventional set of bins), combining the groups of healthy (Golden Retriever; GR), dystrophic (Golden Retriever Muscular Dystrophy; GRMD) and MuStem cell-treated dystrophic GRMD (GRMDT) dogs for each filter.
