Figure 4
From: High flux novel polymeric membrane for renal applications

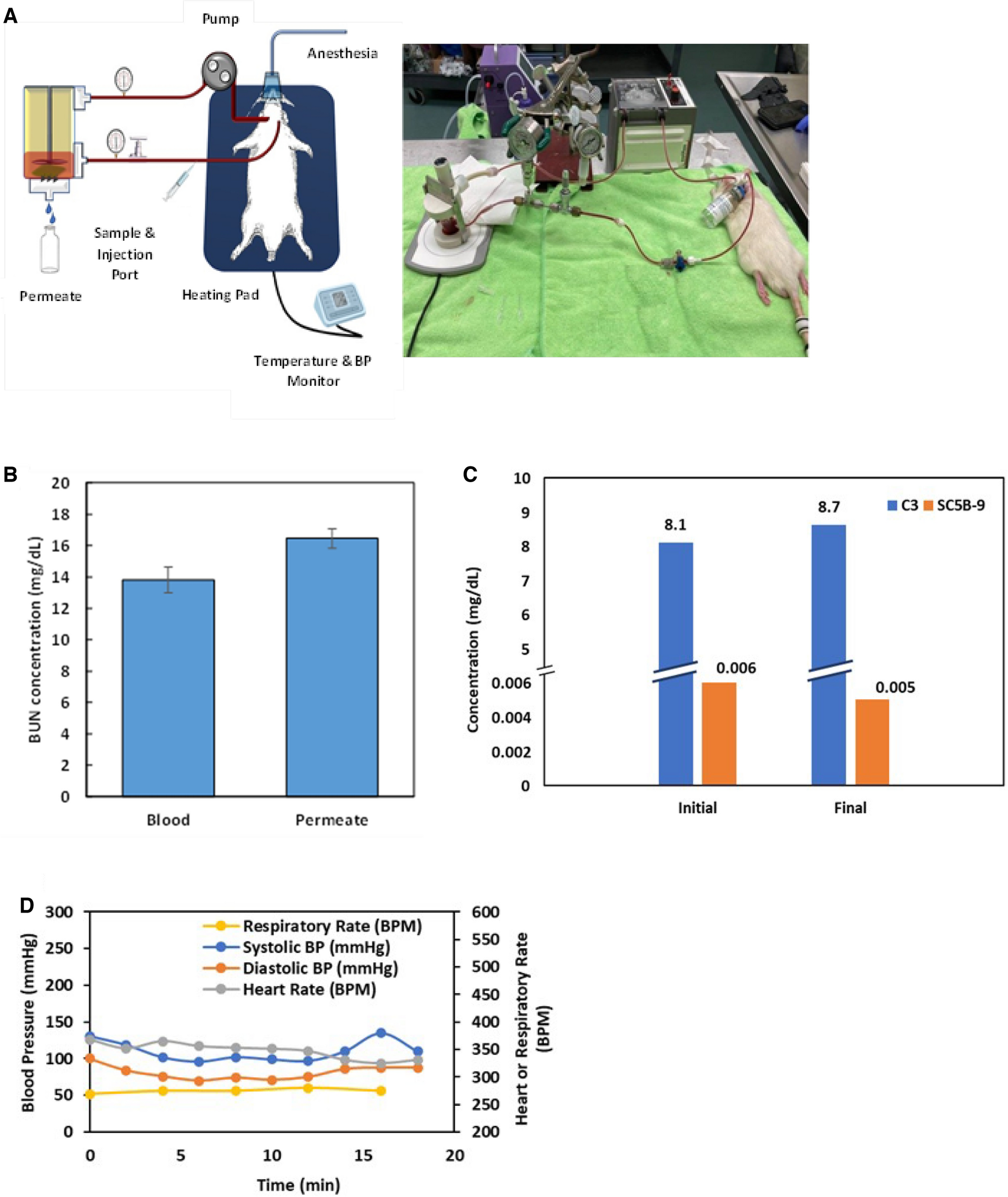

Scheme and results for ex vivo experiments. (A) Schematic and picture of ultrafiltration ex vivo experiment. (B) Permeation of BUN through the NC-ILM (n = 4). (C) Initial and final concentration of complement component C3 (C3) and rat soluble terminal complement complex (SC5B-9) in mg/dL (n = 4). (D) Vital measurements from one dialysis experiment (n = 1). Anesthesia level changes and saline administration were provided according to the vitals measurements to keep the animal stable. Both the tubing and membrane casing used in the experiments were made of biocompatible materials. (A) Generated using Microsoft PowerPoint for Microsoft 365 MSO (Version 2302 Build 16.0.16130.20298) 64-bit using stock images.
