Figure 13
From: Time series causal relationships discovery through feature importance and ensemble models

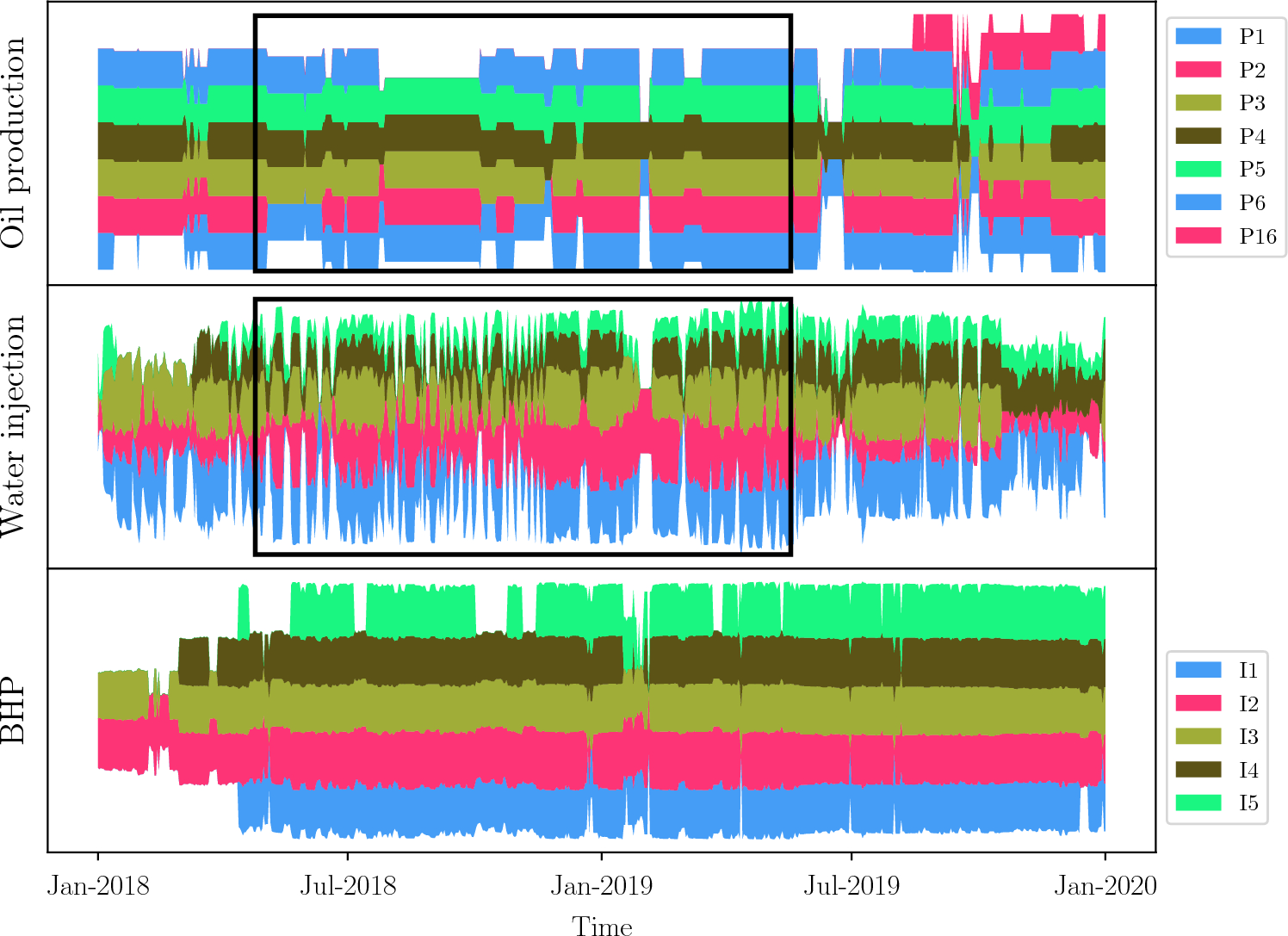

Visualization of available data for the low region of the Pre-Salt oil production field. The first panel represents data coming from the producers and the remaining panels represent data coming from injectors.
