Figure 2

From: Model-predicted geometry variations to compensate material variability in the design of classical guitars

Figure 2The alternative text for this image may have been generated using AI.

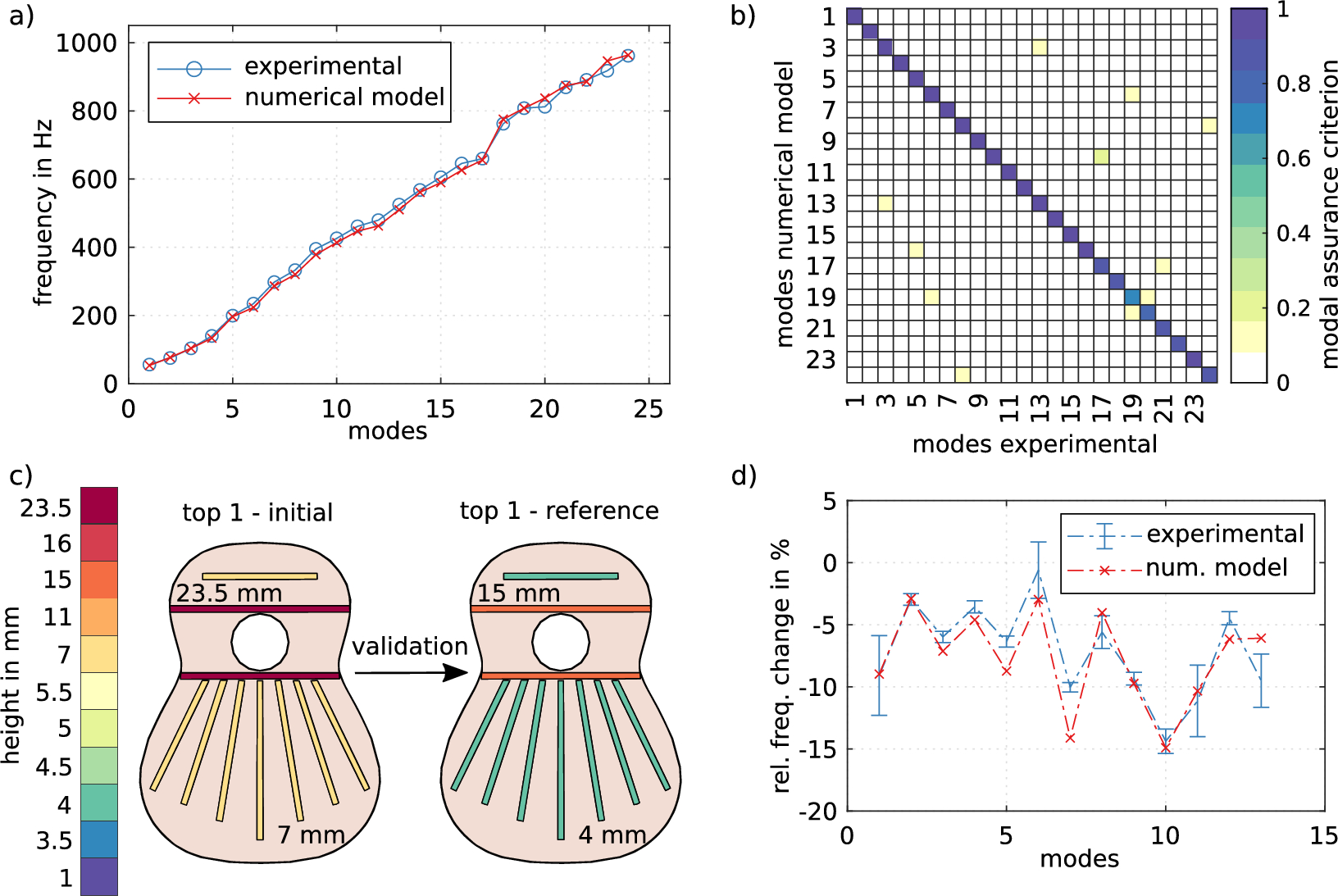

(a) Comparison of eigenfrequencies calculated from the numerical model and experimentally identified eigenfrequencies for the initial configuration of top 1. (b) Comparison of eigenmodes between the numerical model and the experimental modal analysis. (c) Conducted bracing height changes to validate the numerical model. (d) Relative frequency changes caused by the bracing height variation in the numerical model and the experiment.
