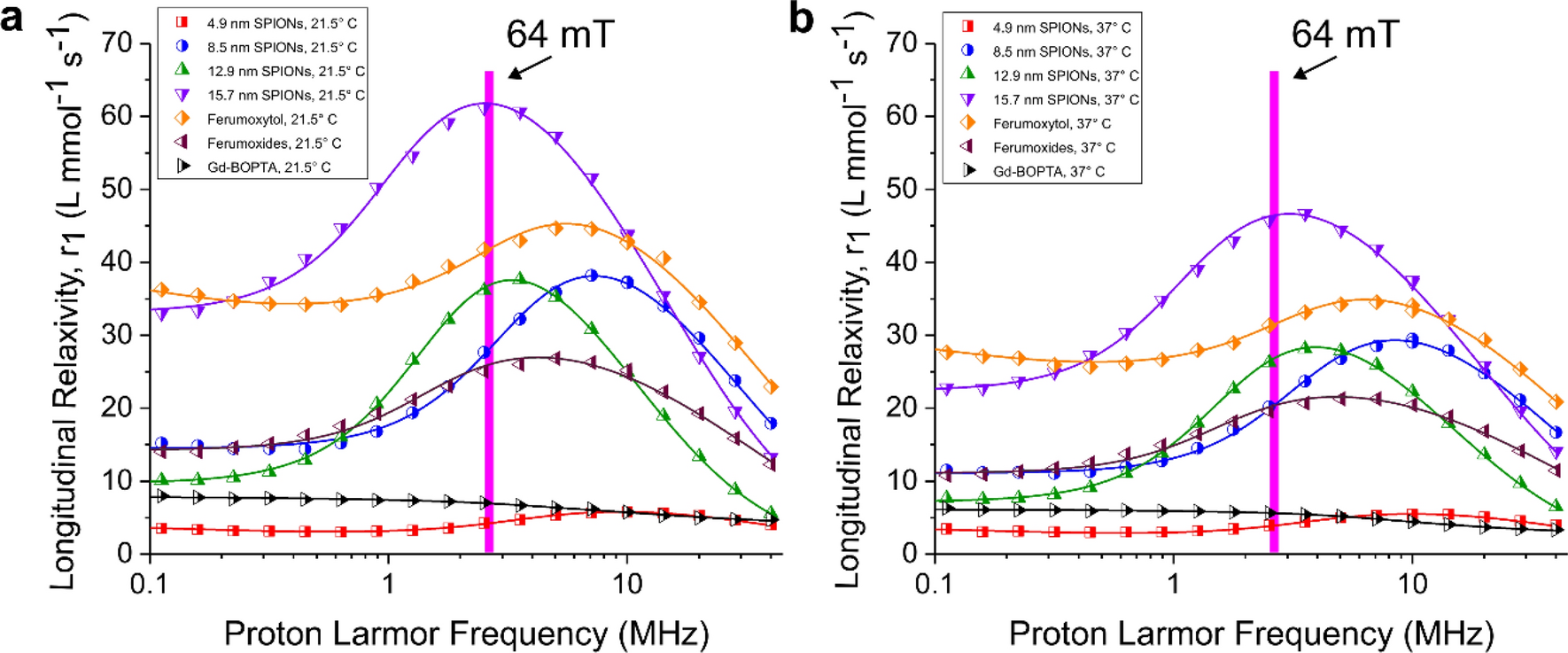

Figure 5
Relaxivity profiles obtained from the nuclear magnetic resonance dispersion (NMRD) data recorded at (a) 21.5 °C and (b) 37 °C. Solid lines show fits to theory for proton relaxation. The large vertical lines at 2.72 MHz correspond to the Larmor frequency of protons at 64 mT.
