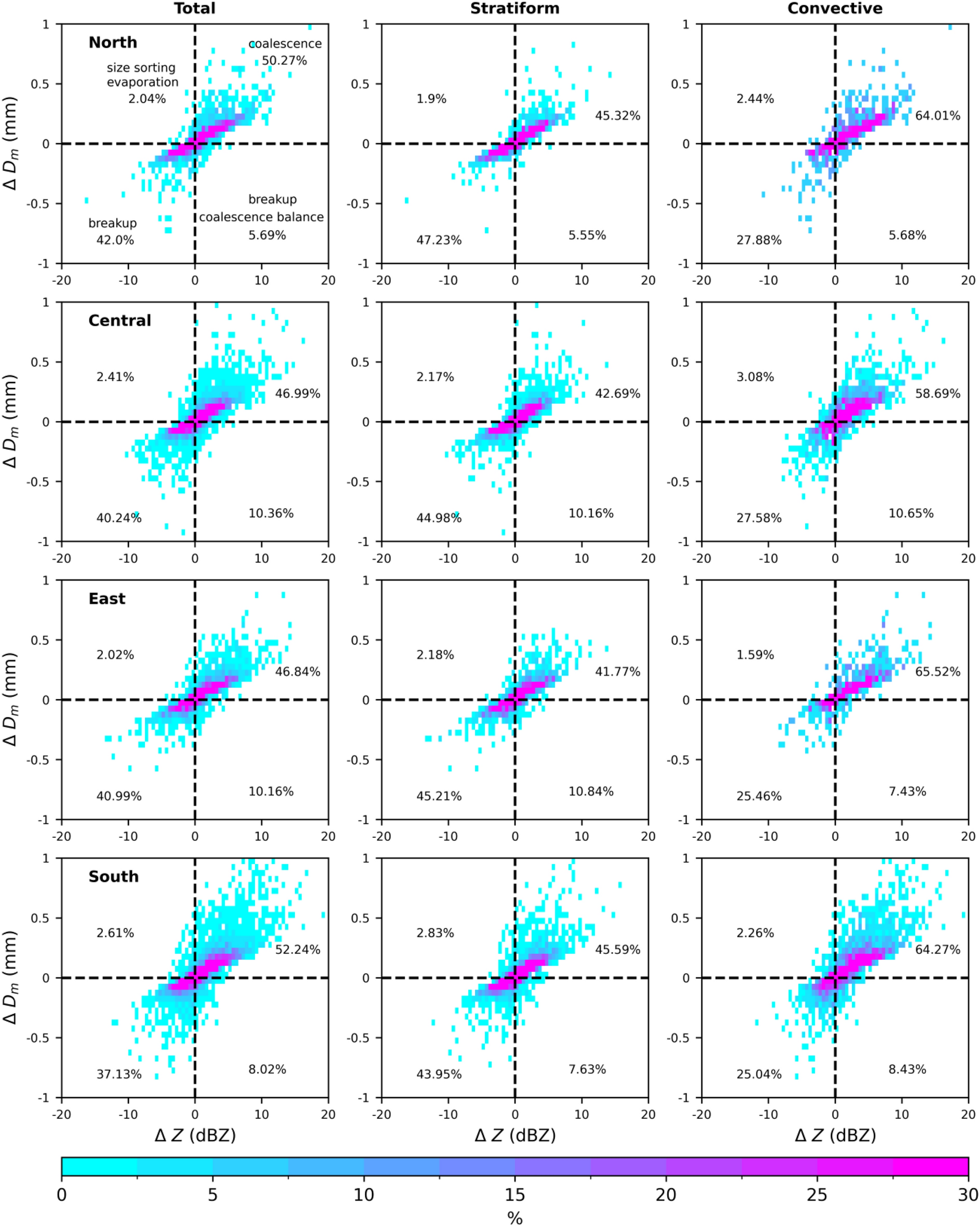

Figure 10
Probability density distributions of mass-weighted mean diameter and radar reflectivity in the 1 km layer depth (ΔDm = (Dm)2 km − (Dm)3 km and ΔZ = (Z)2 km − (Z)3 km) in the warm rain regions of summer clouds over north (first row), central (second row), east (third row), and south (fourth row) Taiwan for total (first column), stratiform (second column), and convective (third column) precipitation.
