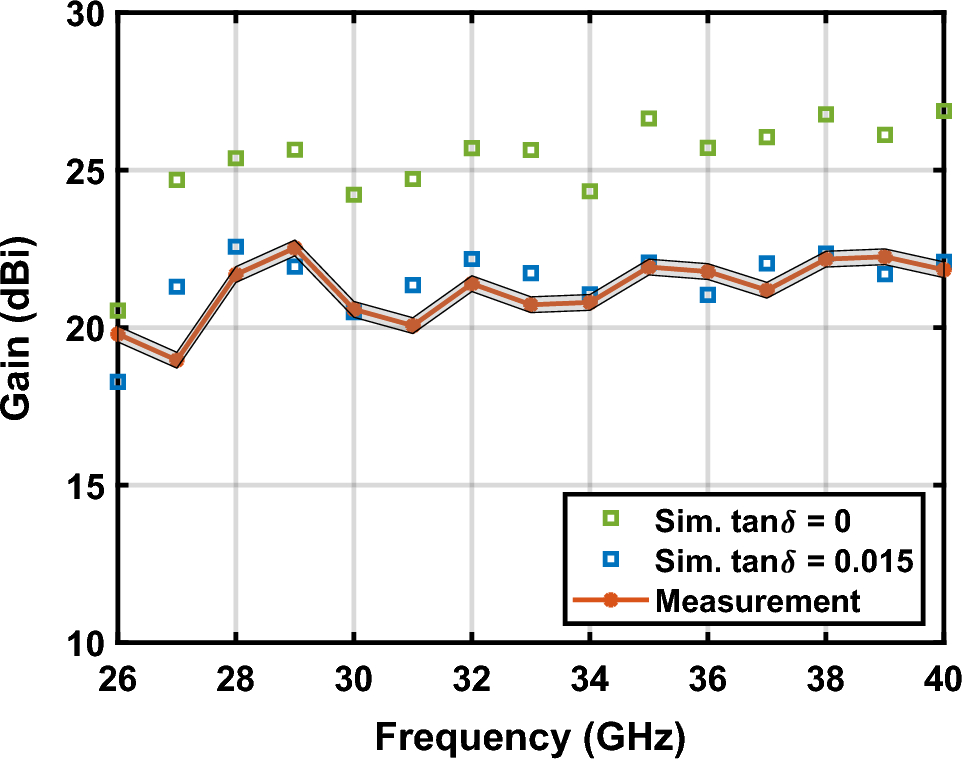

Figure 11
From: Additive manufacturing in compact high-gain wideband antennas operating in mm-wave frequencies
Measured and simulated gain in the entire Ka-band and evaluation of the impact of the dielectric loss. The measured gain considers an error of \(\pm 0.25 \mathrm{dB}\) due to the tolerance on the horn antenna used as reference.
