Figure 4
From: Deep learning framework for sensor array precision and accuracy enhancement

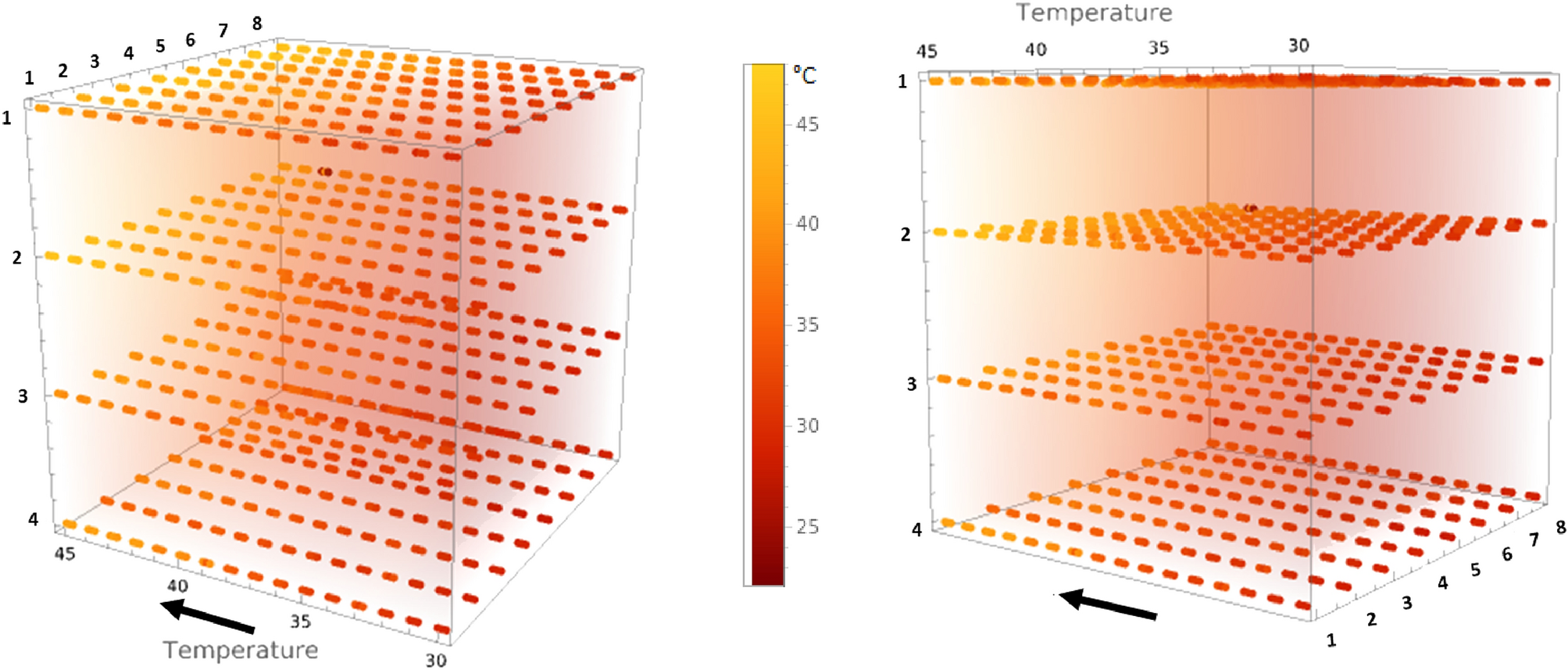

3D heatmaps of our individual sensors’ readings with increasing temperature in the black arrow’s direction from two (2) different viewpoints. Each dotted line represents the evolution of one sensor. Axes going from 1 to 4 (row) and 1-8 (column) indicate the sensors’ individual placement. Generated with Mathematica Online v13.1 (https://www.wolfram.com/mathematica/online/).
