Figure 5

From: Construction of a reduced-order model based on tensor decomposition and its application to airbag deployment simulations

Figure 5

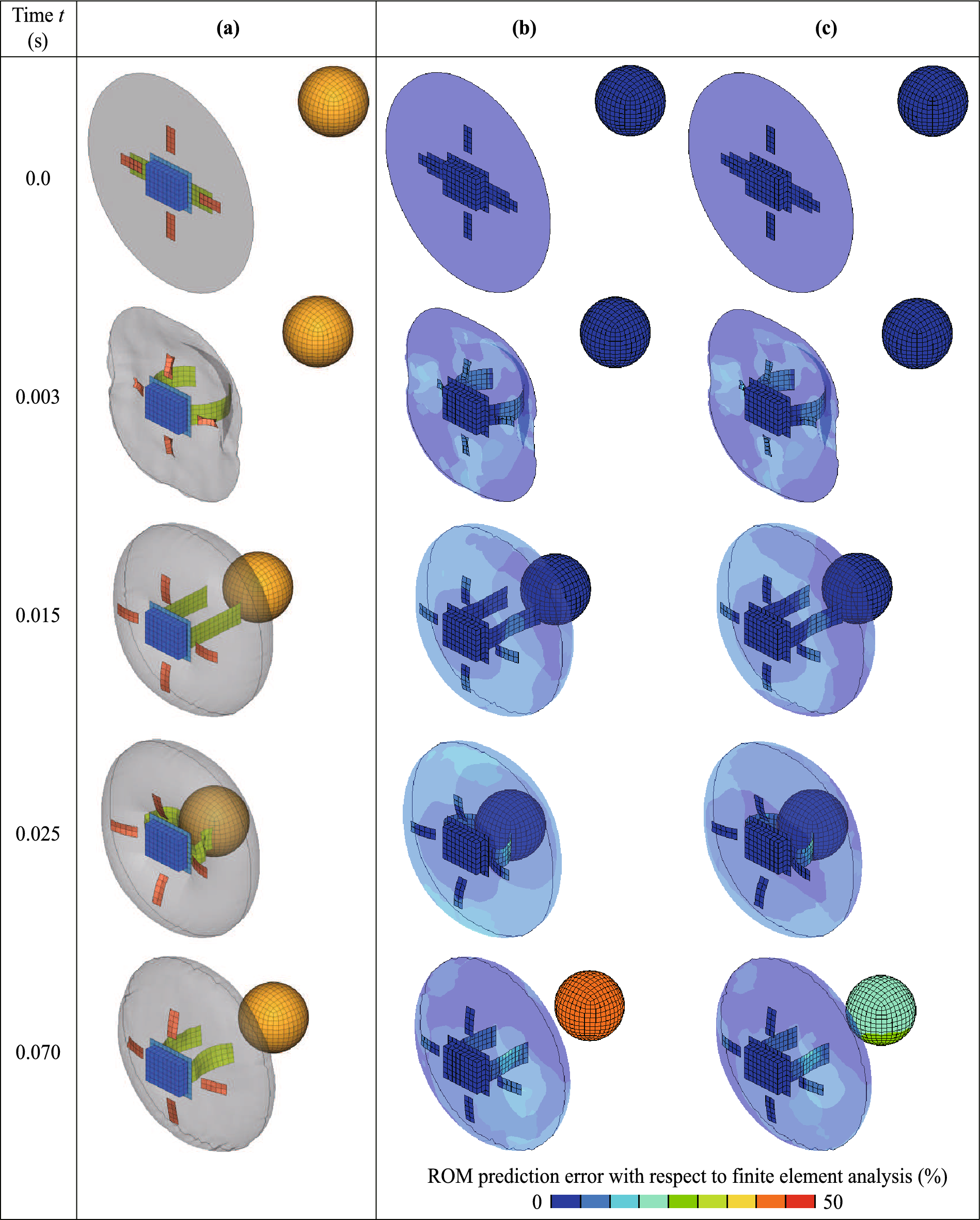

Comparison of airbag deployment behavior obtained by (a) finite element analysis and ROMs with (b) piecewise linear and (c) Akima-spline interpolation. Contour maps of errors regarding nodal displacements with respect to the finite element analysis are depicted in (b) and (c). Note that the behavior with the parameter set maximizing the prediction error using the Akima-spline approximation is displayed here.
