Figure 3 | Scientific Reports

Figure 3

From: Enzyme stabilization and thermotolerance function of the intrinsically disordered LEA2 proteins from date palm

Figure 3

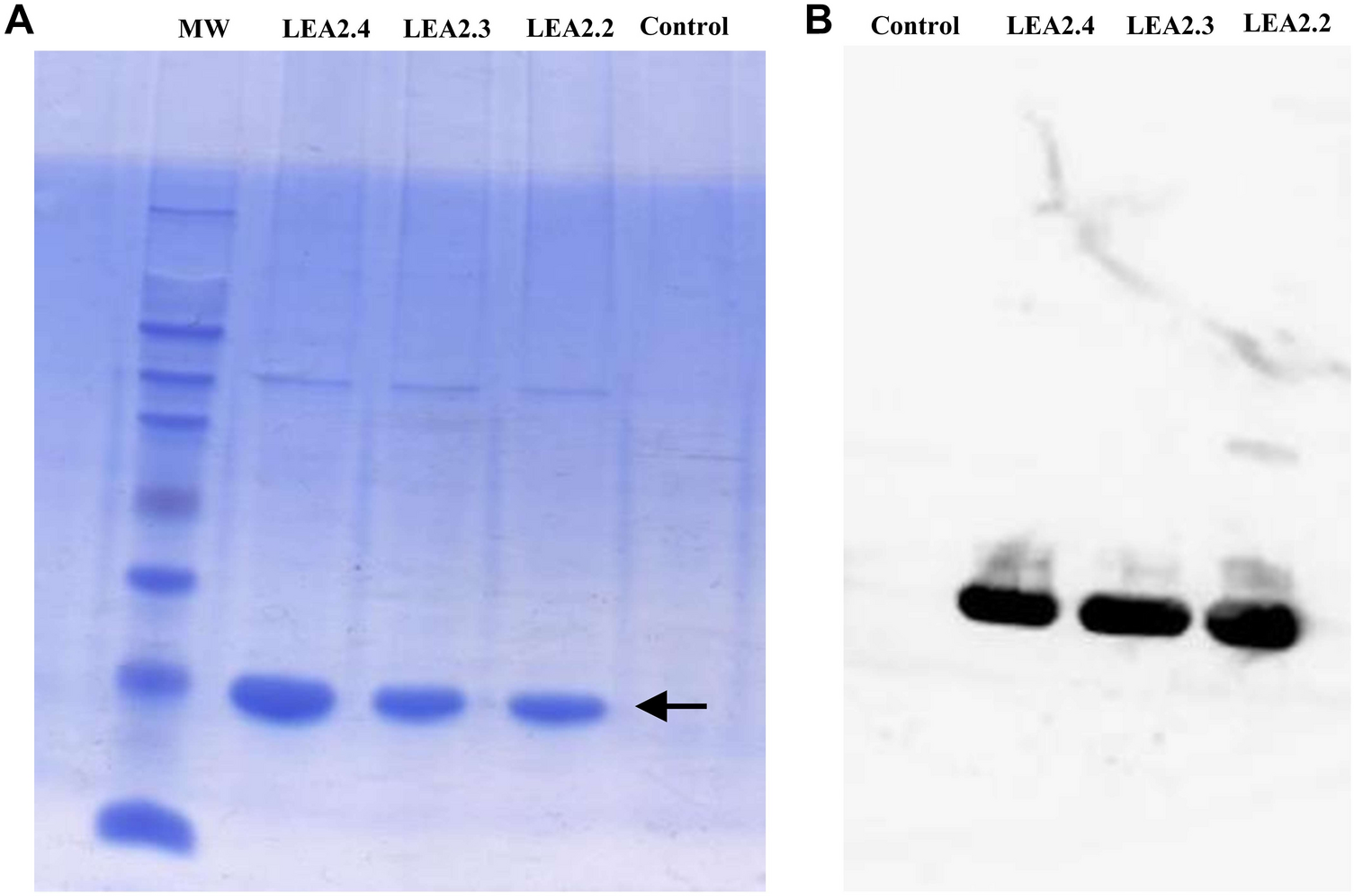

SDS-PAGE and Western blot analysis of PdLEA2 proteins expression and purification. (A) SDS-PAGE profile of recombinant proteins, Lane 1 is the protein ladder, Lanes 2, 3 and 4 are induced samples of PdLEA2.4, PdLEA2.3, and PdLEA2.2, and Lane 5 is the control. (B) Western blot of 1-Control, 2-PdLEA2.4, 3-PdLEA2.3, and 4-PdLEA2.2 proteins, identified using a His6-tag specific antibody.
