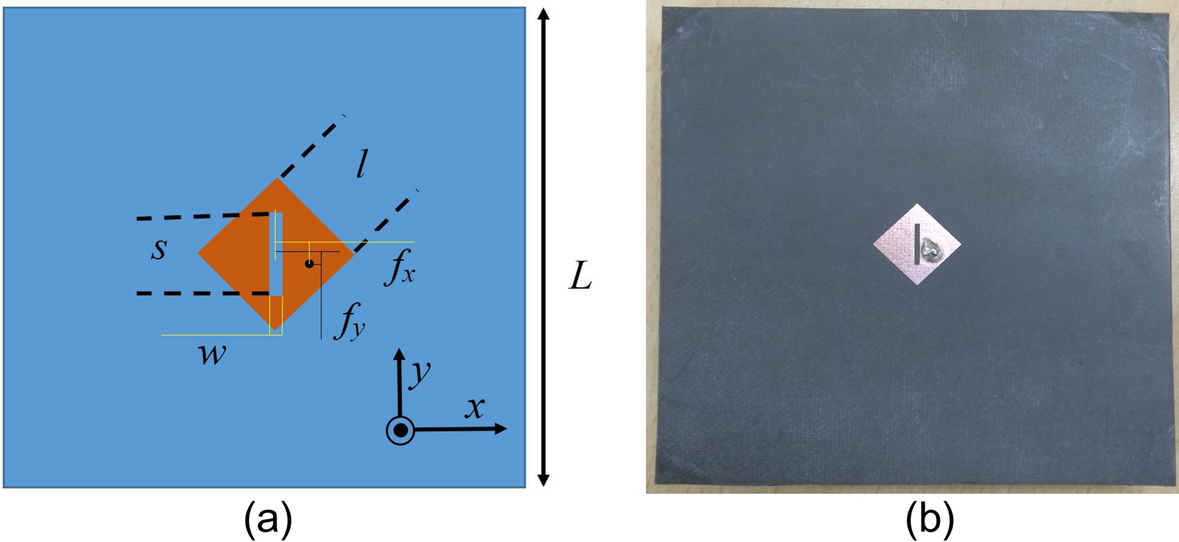

Figure 6
(a) Basic CP source patch, l = 9.9 mm, s = 7 mm, w = 0.8 mm, fx = 2.6 mm, fy = 1.4 mm, L = 80 mm. (b) Fabricated prototype.
Figure 6 | Scientific Reports
(a) Basic CP source patch, l = 9.9 mm, s = 7 mm, w = 0.8 mm, fx = 2.6 mm, fy = 1.4 mm, L = 80 mm. (b) Fabricated prototype.
