Figure 2
From: Evolutionary games on multilayer networks: coordination and equilibrium selection

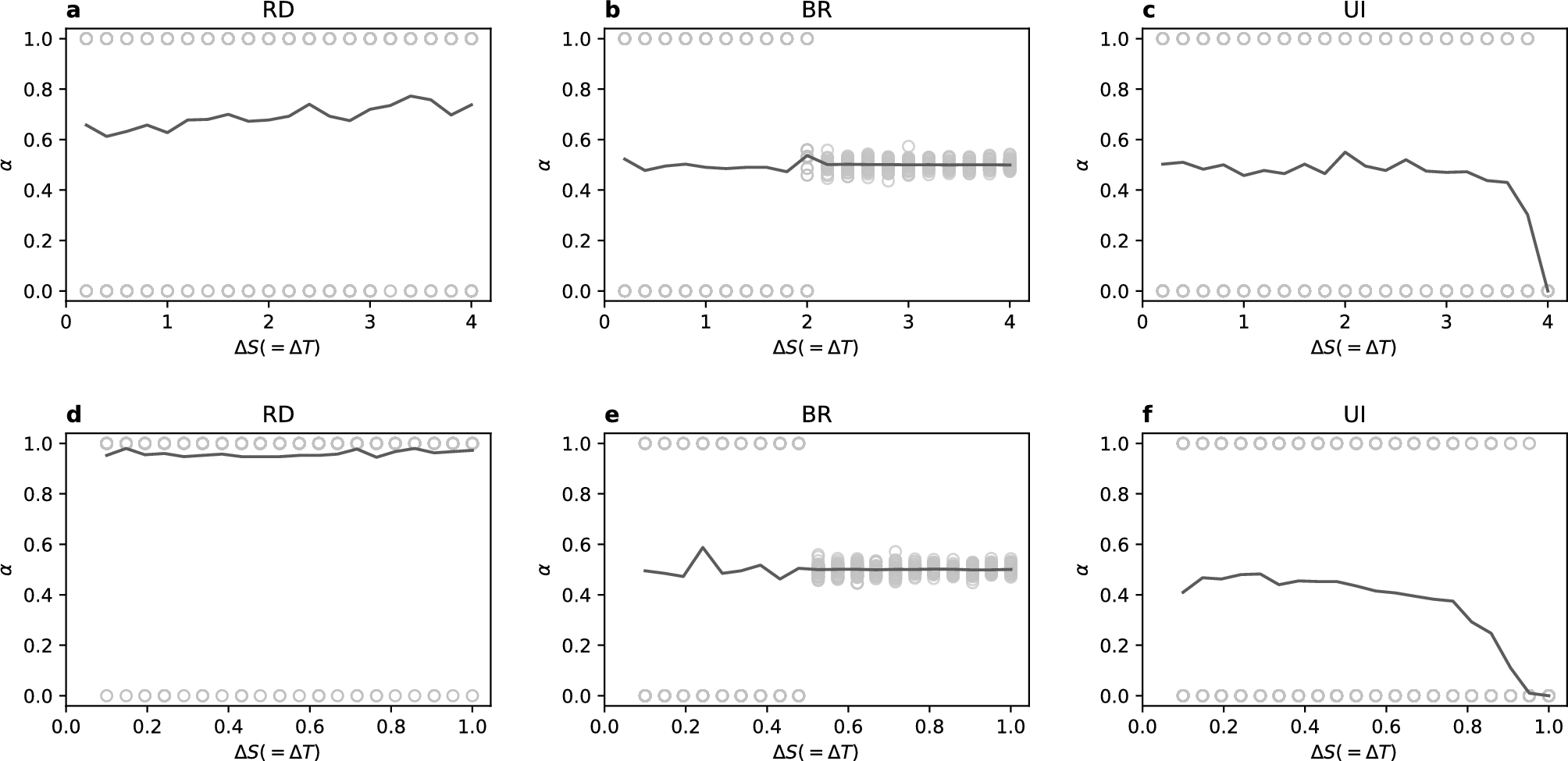

Coordination rate \(\alpha =\alpha ^I=\alpha ^{II}\) vs gap size \(\Delta S\) for full node overlap \(q=1\) (the multiplex case). The upper row (a–c) presents the diagonal case and the bottom row (d–f) the stag hunt. For RD and BR each layer has \(N=1000\) nodes with an intra-layer degree \(k=8\), for UI it is a complete graph with \(N=500\). Each circle represents the value of \(\alpha\) (for both layers) in one of 400 realisations and solid lines show the average values.
