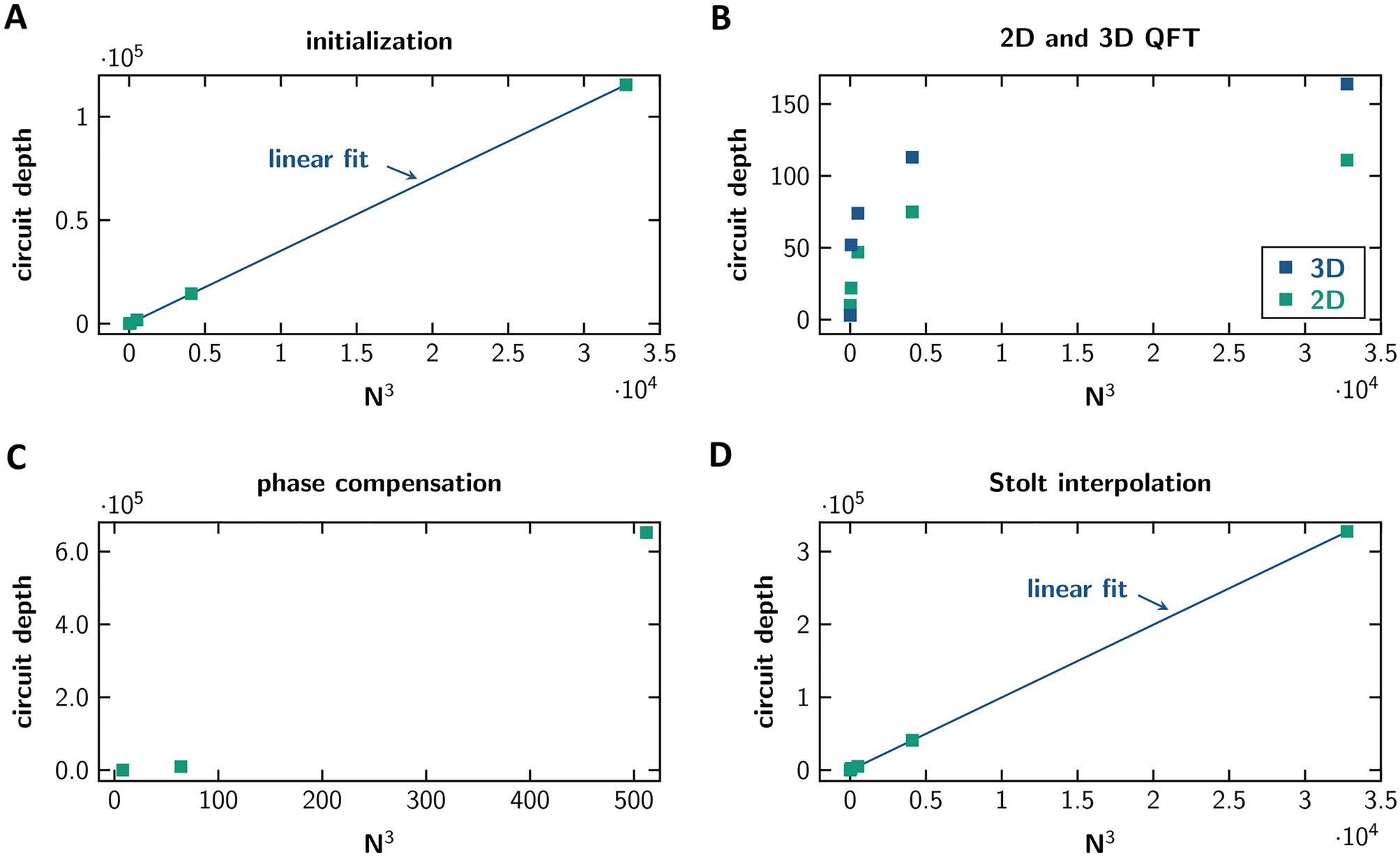

Figure 5
From: Quantum range-migration-algorithm for synthetic aperture radar applications
Circuit depth scaling vs. N3 for (A) initialization, (B) 2D and 3D QFT, (C) phase compensation and (D) Stolt interpolation. All routines are decomposed to basis gates.
