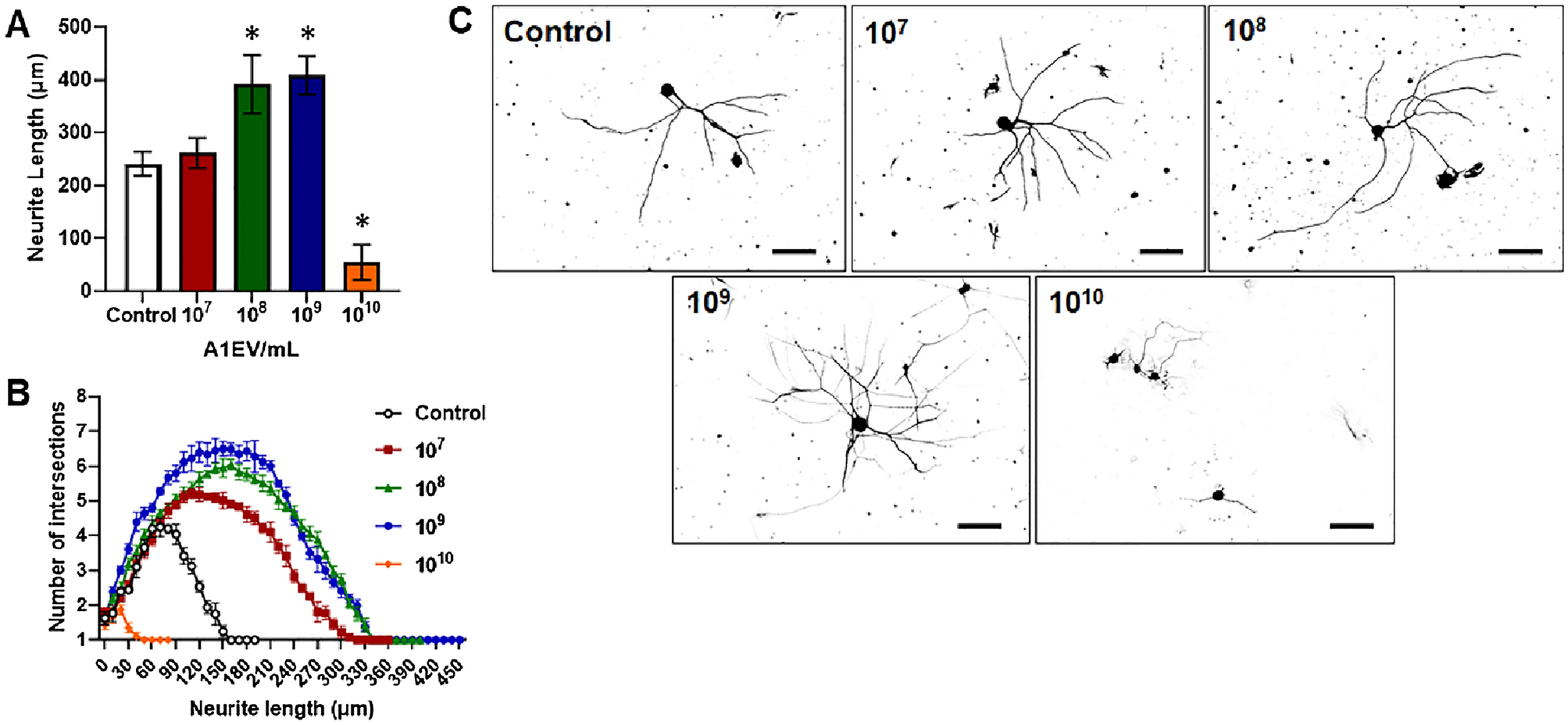

Figure 2
From: Newt A1 cell-derived extracellular vesicles promote mammalian nerve growth
A1EVs promote neurite growth and branching in mammalian sympathetic neurons, in a dose-dependent manner. Graphical representations of the (A) average neurite length and (B) neurite complexity, 12 h after exposure to increasing concentrations of A1EVs. (C) Neurite silhouettes, as imaged by confocal microscopy, demonstrate neurite growth at different concentrations of A1EVs (indicated at the top left of each image, in particles per milliliter). Scale bar = 100 µm. * Indicates statistical significance from Control cells, p < 0.01.
