Figure 8
From: Newt A1 cell-derived extracellular vesicles promote mammalian nerve growth

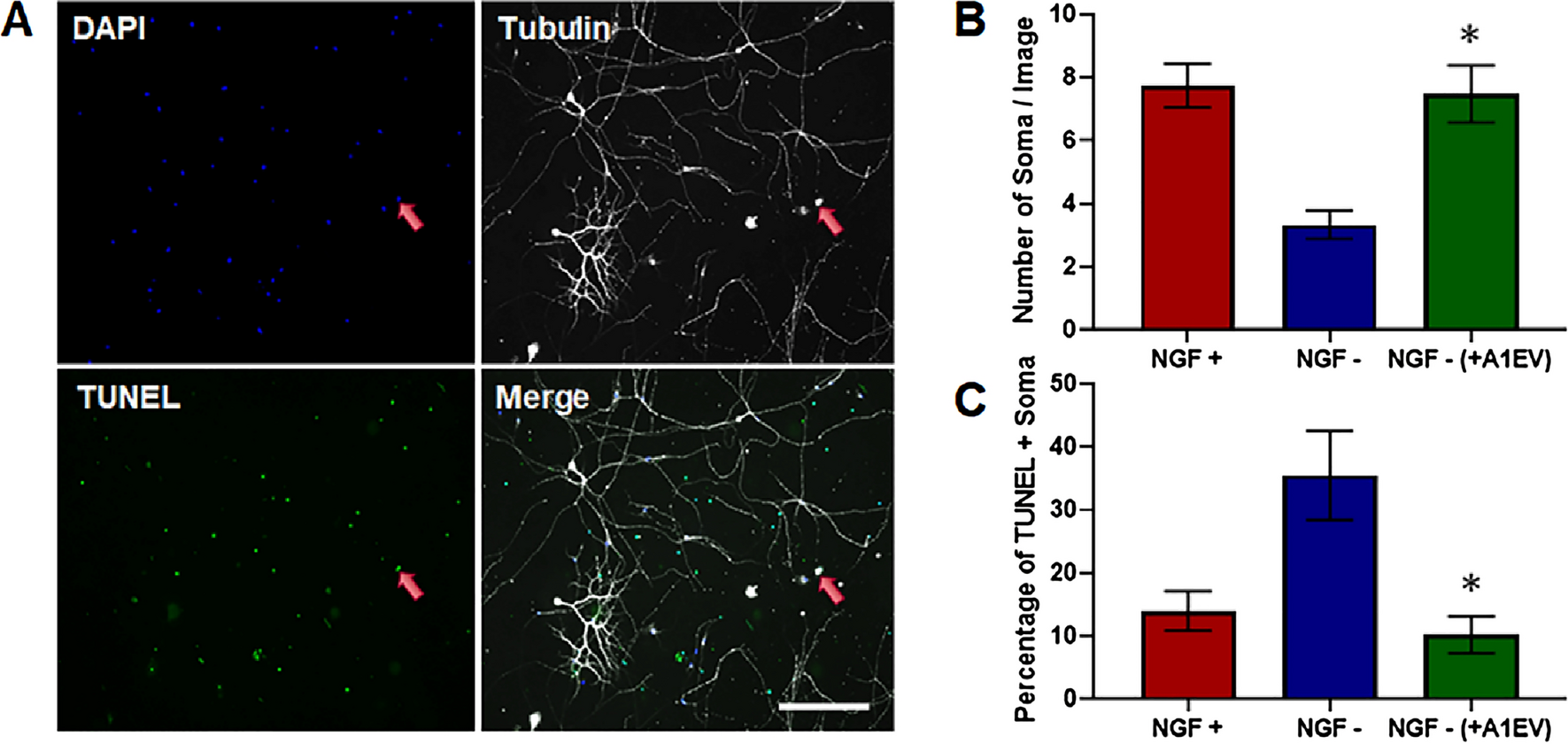

Apoptosis is reduced following A1EV exposure in NGF-deprived SCG neurons. (A) Examples of confocal images of cultured SCG neurons deprived of NGF for 12 h. The red arrow identifies the location of TUNEL-staining (green) within the nucleus (blue) of a single dying soma (white). Graphical representations of the number of soma (B) and number of TUNEL-positive soma (C) in the presence or absence of NGF and A1EVs. Scale bar = 150 µm. * Indicates statistical significance from NGF—neurons, p < 0.05.
