Figure 3
From: The effect of three-layer liner on the jet formation and penetration capability of shaped charge jet

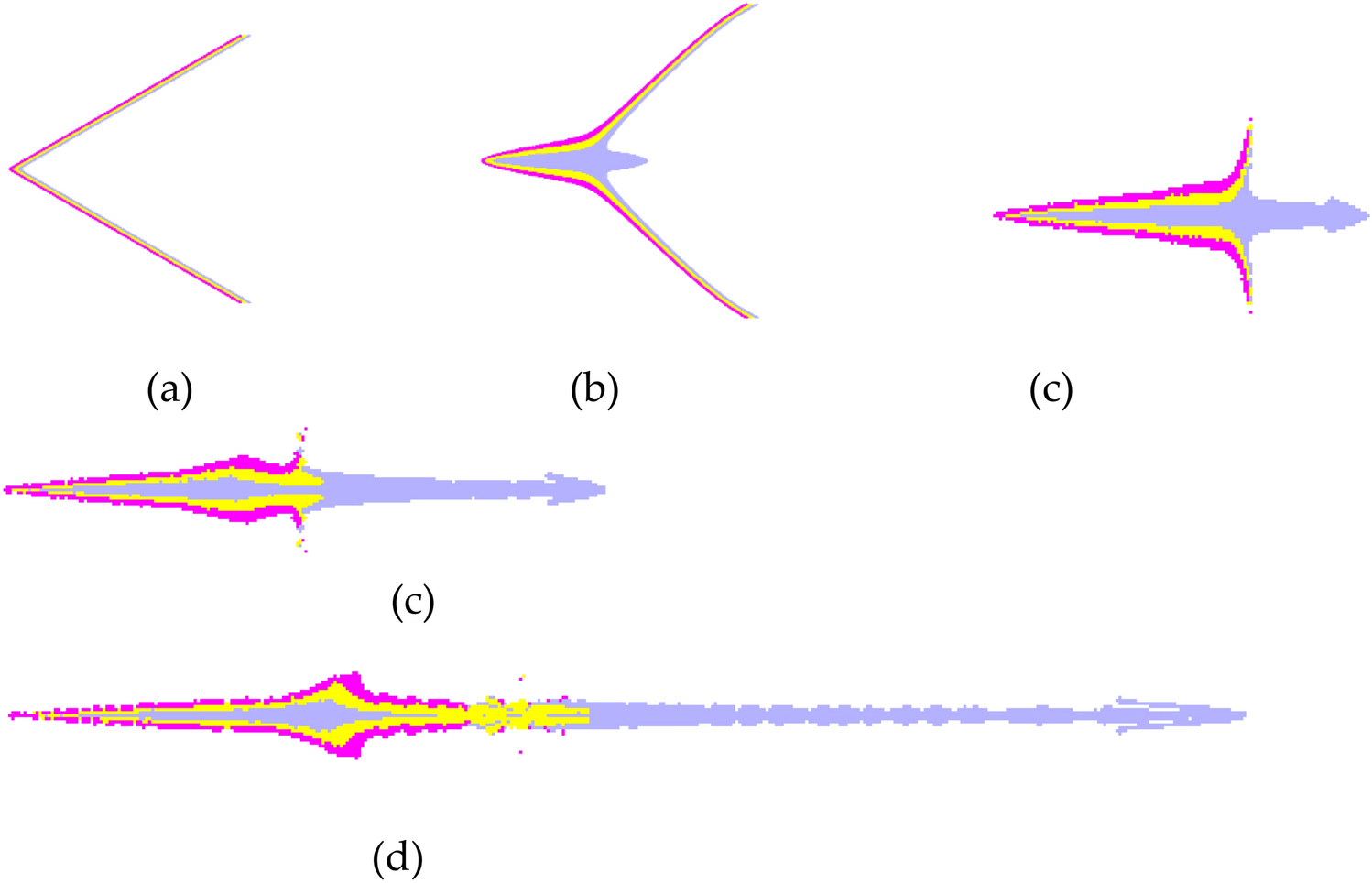

Schematic diagram of jet forming process of three-layer liner. (a) t = 0 \(\mathrm{\mu s}\). (b) t = 10 \(\mathrm{\mu s}.\) (c) t = 20 \(\mathrm{\mu s}.\) (d) t = 30 \(\mathrm{\mu s}\). (e) t = 50 \(\mathrm{\mu s}.\)
