Figure 3 | Scientific Reports

Figure 3

From: Microbe-metabolite interaction networks, antibiotic resistance, and in vitro reconstitution of the penile prosthesis biofilm support a paradigm shift from infection to colonization

Figure 3

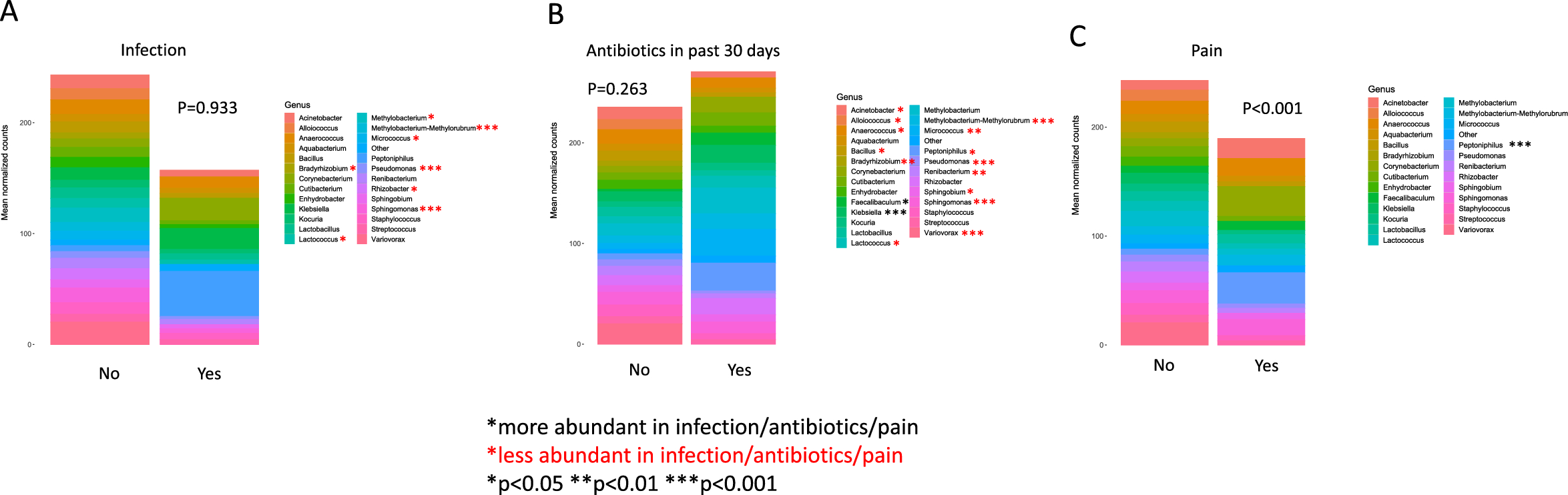

Microbial profile differs by infection and antibiotic status. (A) Microbial genera normalized counts stratified by whether or not the analyzed device was associated with infection. (B) Microbial normalized counts stratified by antibiotic use within the 30 days prior to device removal. (C) Microbial genera normalized counts stratified by whether or not the analyzed device was associated with pain. p-values are indicated in respective graphs. Black asterisks indicate genera more abundant in infection/antibiotic use; red asterisks indicate genera less abundant in infection/antibiotic use. *p < 0.05; **p < 0.01; ***p < 0.001.
