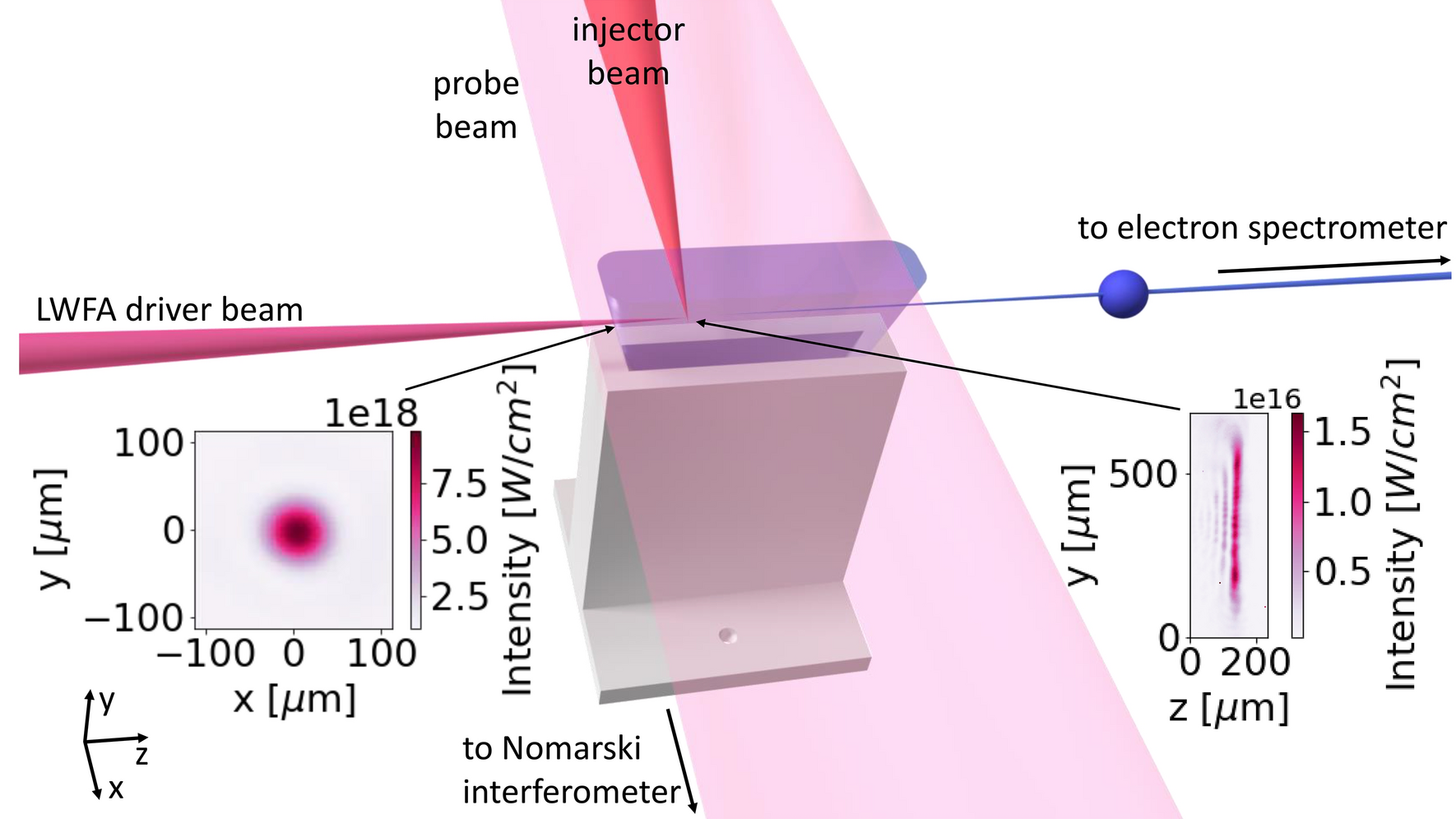

Figure 2
From: Laser-accelerated electron beams at 1 GeV using optically-induced shock injection
Schematic of the experimental setup showing the slit nozzle as gas target. The LWFA laser drives a wakefield in the gas jet. The left and right insets depict the measured vacuum focus of the driver beam and the astigmatic line focus of the injector beam, respectively. The latter is oriented perpendicularly to the drive beam axis and arrives between 0.2 and \({2}\text {ns}\) early, allowing the plasma to evolve before the drive beam arrives. At the density transition generated by the injector beam, an electron bunch is injected into the wake. A large diameter probe beam propagating perpendicular to the driver beam is used to measure the plasma density using a Nomarski interferometer. The injected electron bunch is accelerated in the wakefield and travels further downstream to an electron spectrometer.
