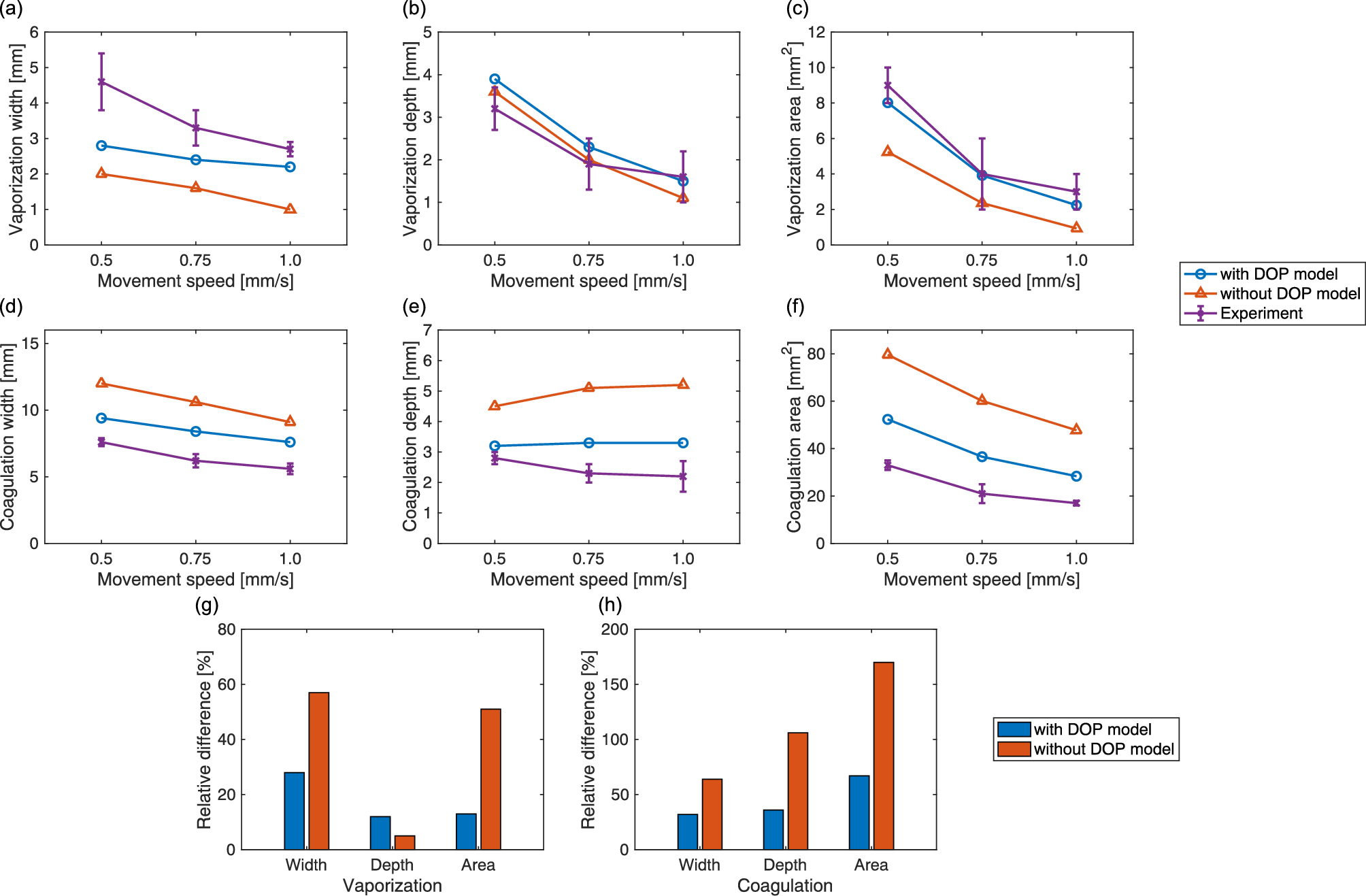

Figure 5
Quantitative comparison of the vaporization and coagulation regions obtained from the simulations with and without the DOP model and those obtained experimentally for the high-power irradiation settings. (a) Widths, (b) depths, and (c) areas of the vaporization regions, and (d) widths, (e) depths, and (f) areas of the coagulation regions. Three independent experiments were performed for each irradiation condition. The error bars represent the standard deviation. Absolute values of relative differences in (g) vaporization width, depth, and area, and (h) coagulation width, depth, and area between the simulated and experimental results obtained with and without the DOP model.
