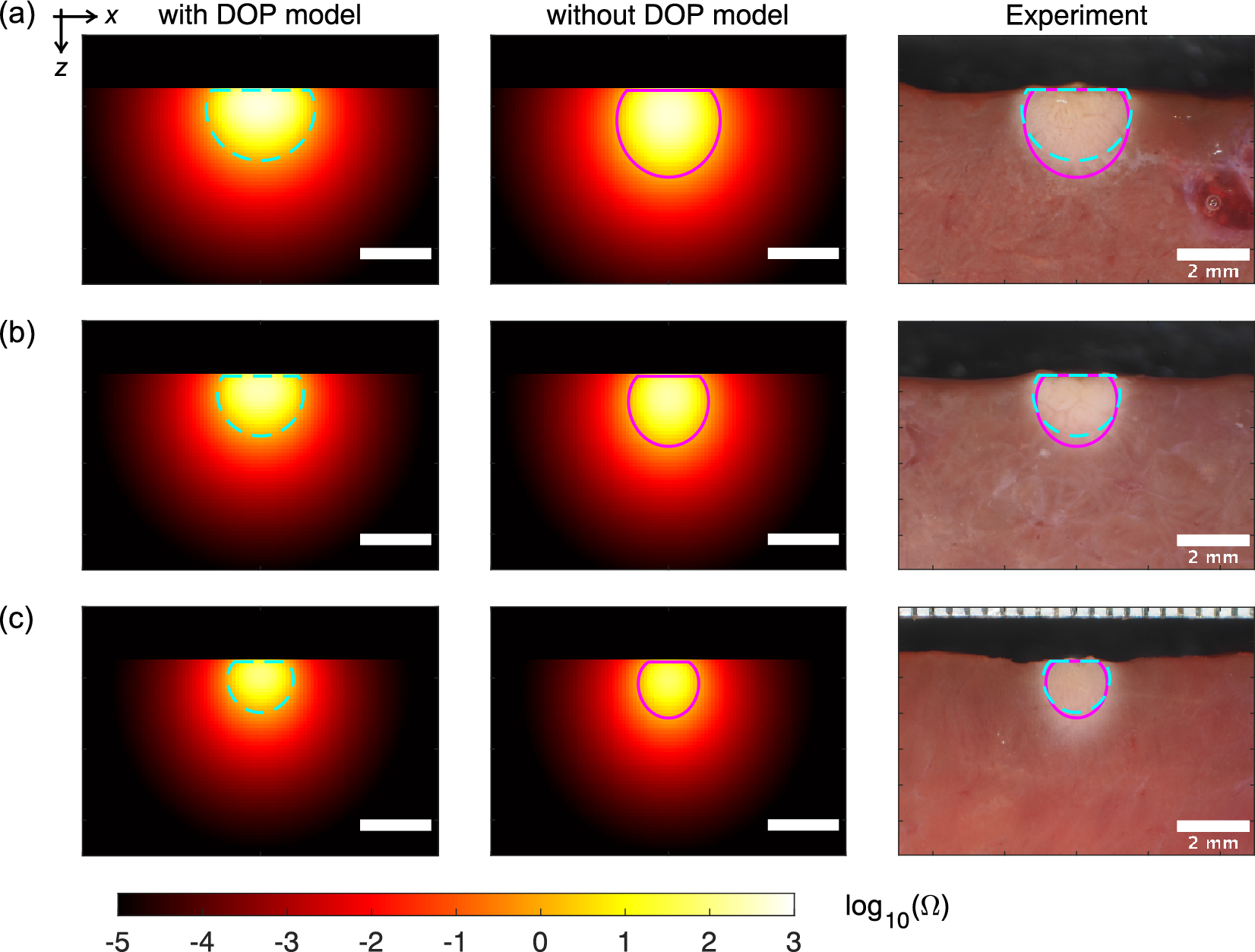

Figure 6
Thermal damage distributions on the zx plane with \(y=0\) for an irradiation power of 10 W and movement speeds of (a) 1.0, (b) 1.25, and (c) 1.5 mm/s from the simulations with and without the DOP model and the experiments (Supplementary Movie S2). The cyan broken lines and the magenta solid lines indicate the tissue regions where \(\Omega \) is equal to 1. The laser beam diameter was 2.8 mm. Scale bar: 2 mm.
