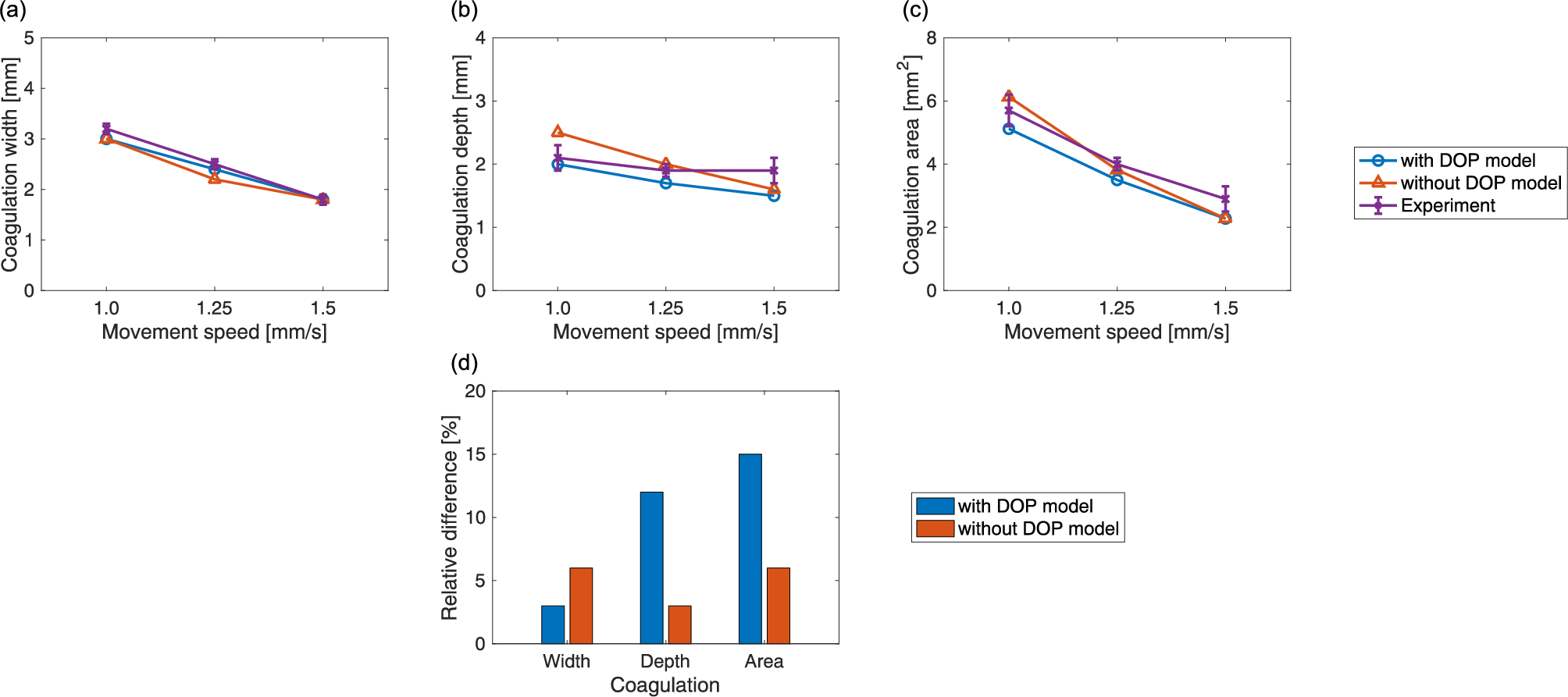

Figure 7
Quantitative comparisons of the coagulation regions between the simulations with and without the DOP model and the experiments for the low-power irradiation settings. (a) Widths, (b) depths, and (c) areas. Three independent experiments were performed for each irradiation condition. The error bars represent the standard deviation. (d) Absolute values of relative differences in coagulation width, depth, and area between the simulated and experimental results obtained with and without the DOP model.
