From: Comparative study of microscale and macroscale technique for encapsulation of Calotropis gigantea extract in metal-conjugated nanomatrices for invasive ductal carcinoma

Figure 6

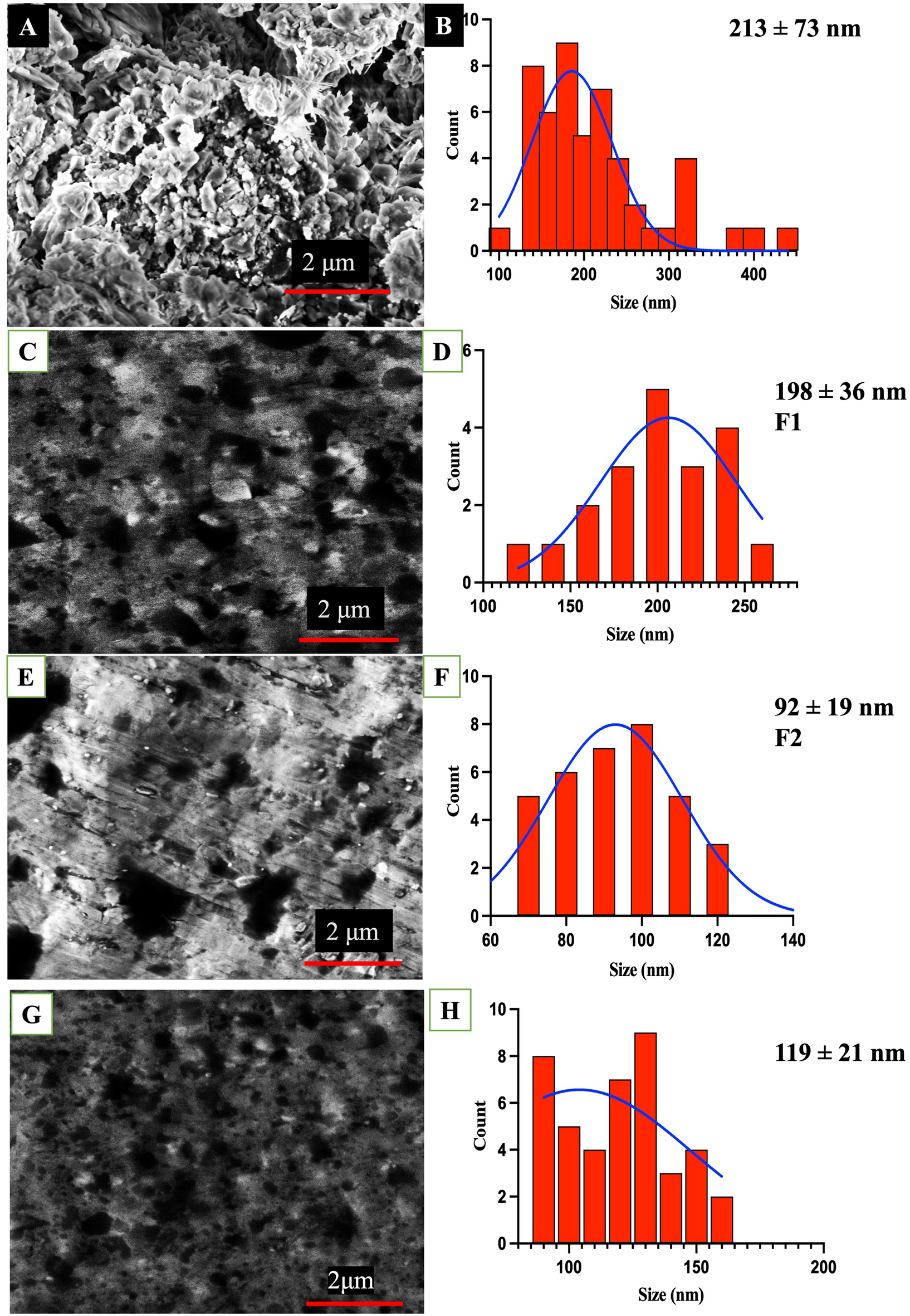

SEM images of CaG(Pol/Ag) nanomatrices. CaG(Pol/Ag) synthesized by batch method is shown in image (A) and histogram in (B) Synthesised by microfluidic system at different flow rates are shown in images (C) and (E) and their respective histograms in (D) and (F). Here flow rate (mL/h) in ratio of aqueous: oil phase is RFR that is F1 = 1:1.5, and F2 = 1: 3. G and H is the SEM image of F2 CaG(Pol/Ag) eight months aged.
