Figure 2
From: Ecological interactions affect the bioactivity of medicinal plants

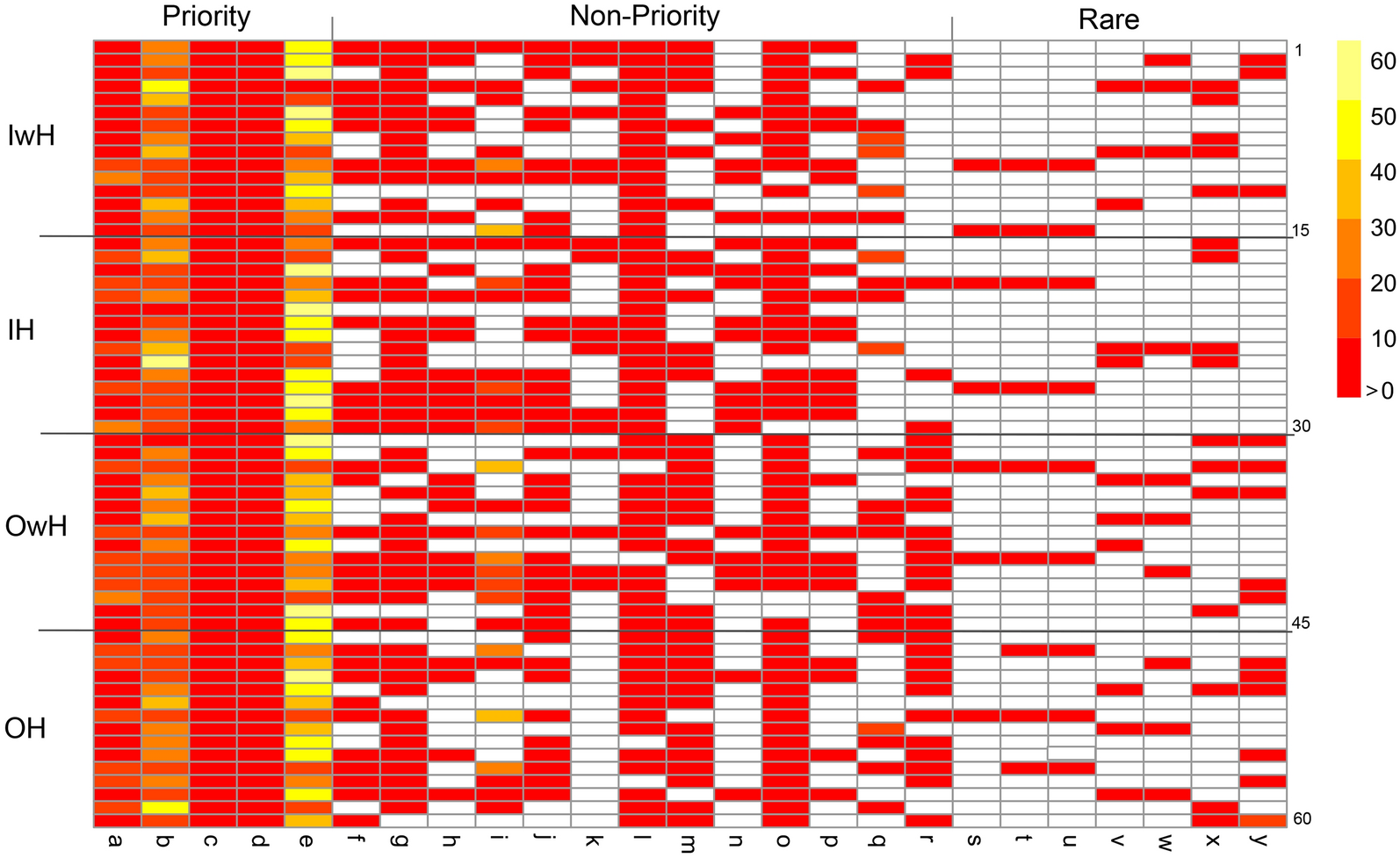

Heatmap showing the relative abundance of the 25 chemical compounds of the essential oil of Lepechinia floribunda. Pollination and simulated herbivory treatments, IwH: inbred plants without simulated herbivory, IH: inbred plants with simulated herbivory, OwH: outcrossed plants without simulated herbivory, OH: outcrossed plants with simulated herbivory. Compounds are ordered according to their frequency of occurrence among the tested plants: priority (present in 100% of plants), non-priority (present in less than 100% and more than 30% of plants) and rare compounds (present in less than 30% of plants). Colors shown in the upright scale represent the relative abundances of compounds (i.e., the percentage of × compound in the essential oil of a plant) from more than zero to 60%, and white cells show absence of compounds. Each row represents an individual plant, and each column represents a chemical compound (signaled with letters) a: borneol, b: β caryophyllene, c: aromadendrene, d: α humulene, e: ledol plus unidentified oxygenated sesquiterpene compound, probably a precursor of ledol, f: α terpineol, g: bornyl acetate, h: α gurjunene, i: 1,8 cineol, j: alloaromadendrene, k: α amorphene, l: ledene, m: α fernesene, n: β selinene, o: nerolidol, p: palustrol, q: tau cadinol, r: α bulnesene, s: α pinene, t: camphene, u: β pinene, v: β gurjunene, w: α guaiene, x: γ cadinene, y: α eudesmol. The R software (function pheatmap of the library “pheatmap”, version 4.1.2) was used to create this heatmap.
