Figure 1

From: Application of multi-echo Dixon and MRS in quantifying hepatic fat content and staging liver fibrosis

Figure 1The alternative text for this image may have been generated using AI.

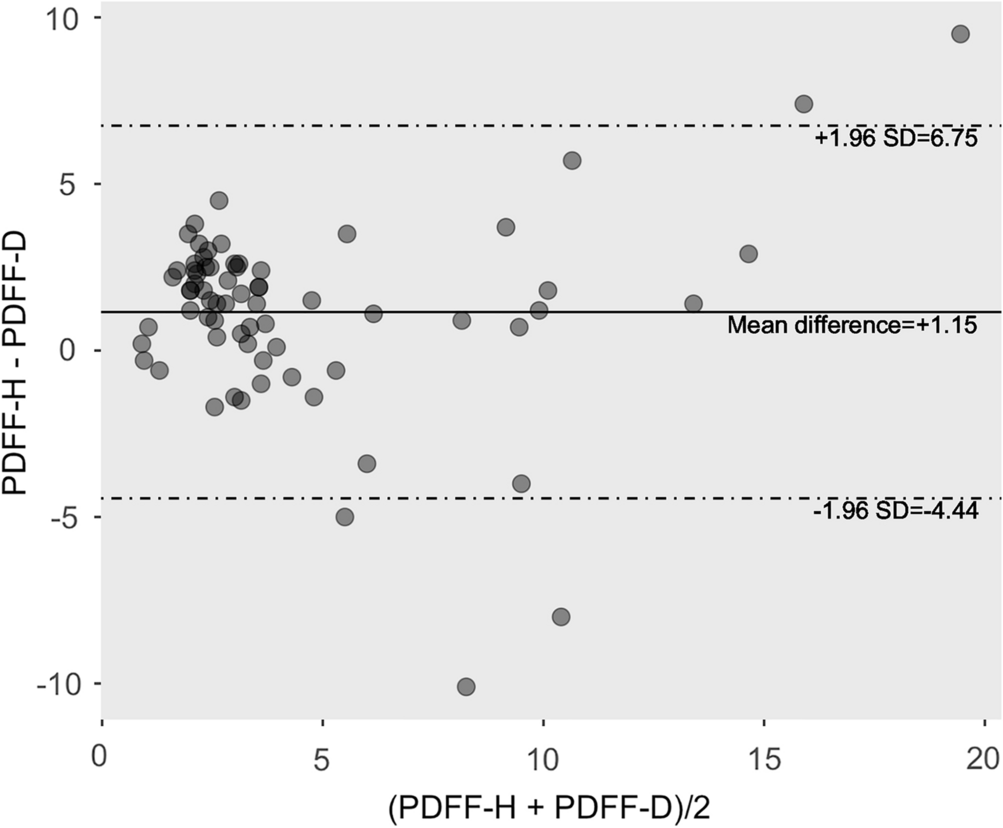

Bland–Altman plot for proton density fat fraction (PDFF), estimated using the breath-hold single-voxel high-speed T2-corrected multi-echo 1H MRS (HISTO) and multi-echo Dixon (ME-Dixon) sequences. The plot shows the − 1.96 and + 1.96 SD limits of the agreement (dotted lines) around the mean difference. PDFF-D PDFF estimated by ME-Dixon, PDFF-H PDFF estimated by HISTO.
