Figure 3 | Scientific Reports

Figure 3

From: Application of multi-echo Dixon and MRS in quantifying hepatic fat content and staging liver fibrosis

Figure 3

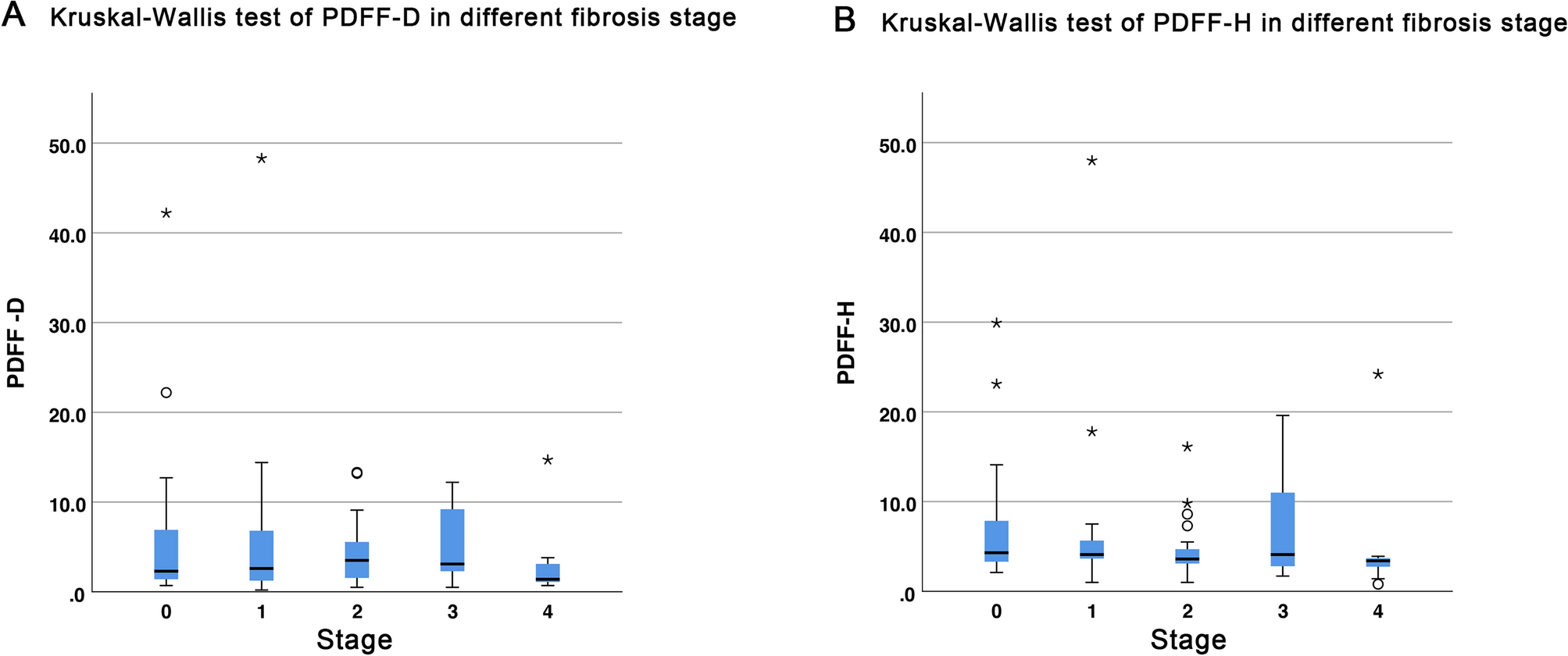

Kruskal–Wallis test to assess the difference between the fibrosis stage groups. Outlier data points marked by open circles were 1.5–3.0 interquartile ranges from the box ends. Outlier data points marked by asterisks were more than three interquartile ranges from the box ends. PDFF proton density fat fraction, HISTO breath-hold single-voxel high-speed T2-corrected multi-echo 1H MRS, ME-Dixon multi-echo Dixon, PDFF-D PDFF estimated by ME-Dixon, PDFF-H PDFF estimated by HISTO.
