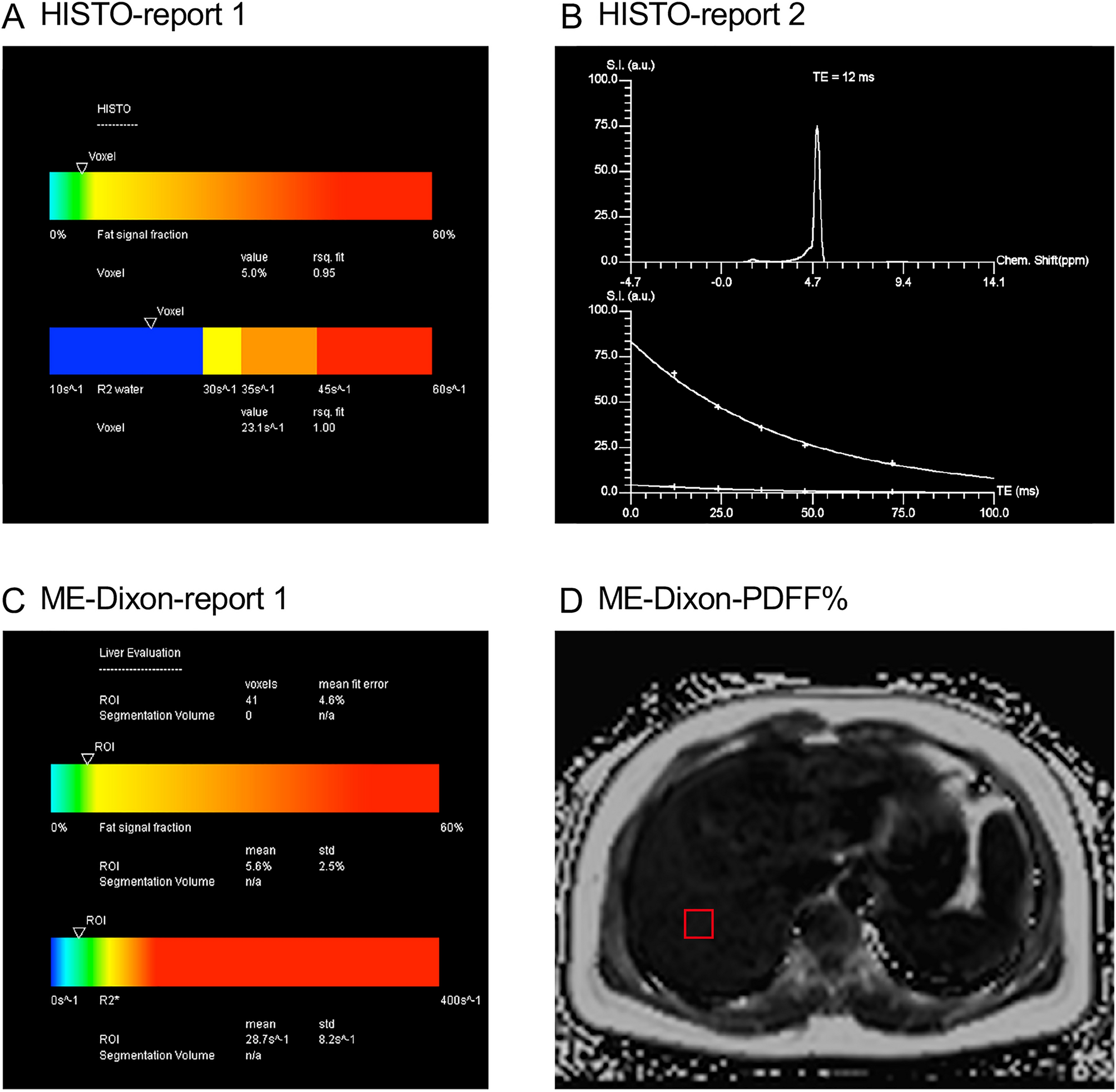

An example of the ME-Dixon and HISTO sequences. Multi-echo Dixon (ME-Dixon) and breath-hold single-voxel high-speed T2-corrected multi-echo 1H MRS (HISTO) sequence images of a 37-year-old female patient with chronic hepatitis B and G2S2 liver fibrosis in histology. The HISTO and ME-Dixon sequence reports show a proton density fat fraction (PDFF) of 5.0 and 5.6%, respectively. D is the slice corresponding to the report in C, and the red squares indicate the placement of the region of interest.
