Figure 1

From: Association between enhanced carbonyl stress and decreased apparent axonal density in schizophrenia by multimodal white matter imaging

Figure 1

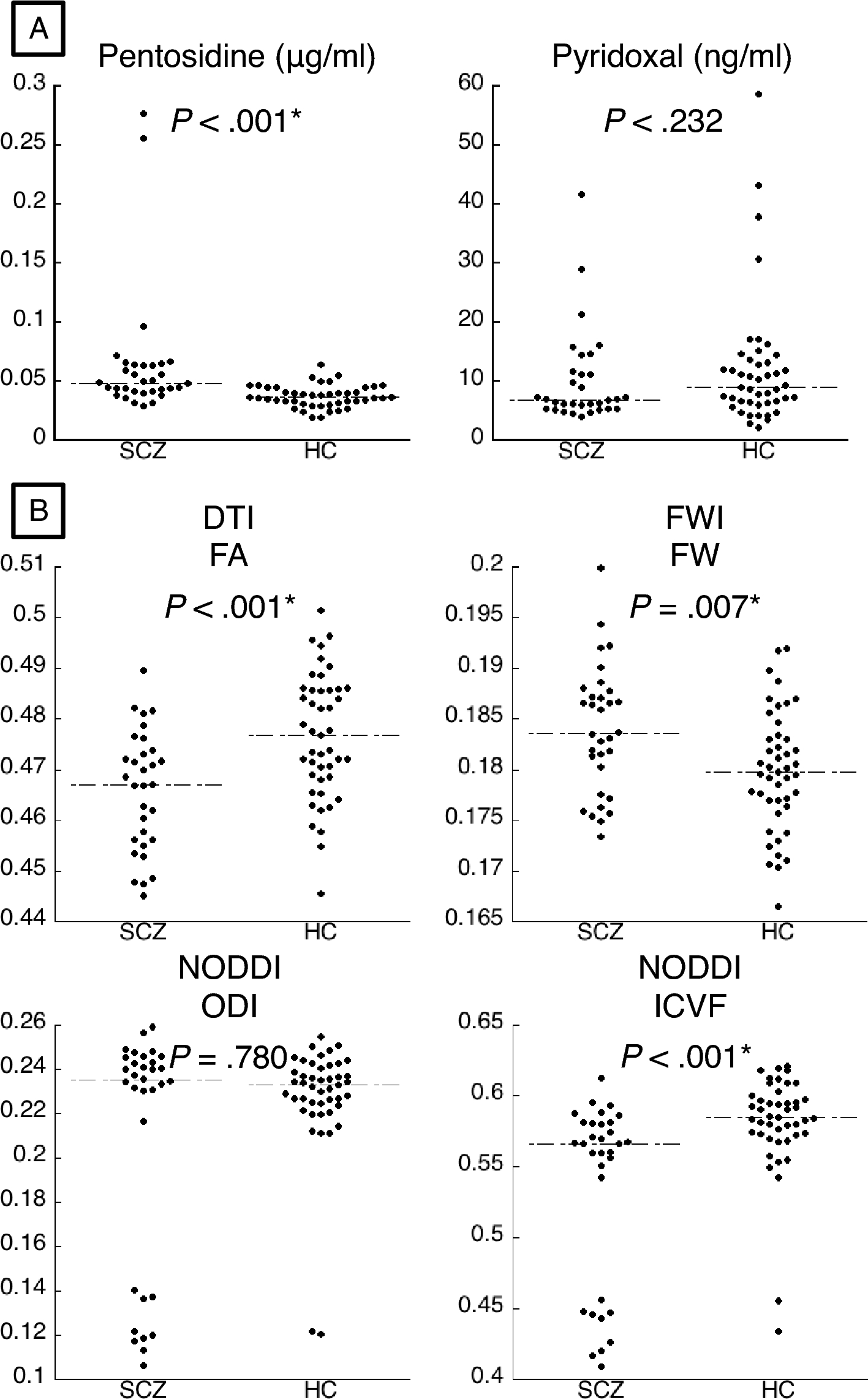

Dot plots of carbonyl stress markers and white matter measures. Dot plots of (A) pentosidine and pyridoxal, (B) fractional anisotropy (FA) of Diffusion Tensor Imaging (DTI), free water (FW) of free water imaging (FWI), and orientation dispersion index (ODI), intra-cellular volume fraction (ICVF) of Neurite Orientation Dispersion and Density Imaging (NODDI) in the schizophrenia (SCZ) and healthy control (HC) groups are indicated. Median values of A) plasma pentosidine level (SCZ: 0.049 µg/ml, HC: 0.037 µg/ml,), serum pyridoxal level (SCZ: 6.900 ng/ml, HC: 9.000 ng/ml), (B) FA (SCZ: 0.467, HC: 0.477), FW (SCZ: 0.184, HC: 0.180), ODI (SCZ: 0.235, HC: 0.233), ICVF (SCZ: 0.566, HC: 0.585) are indicated by lines.
