Figure 3
From: Whole-genome resequencing of common bean elite breeding lines

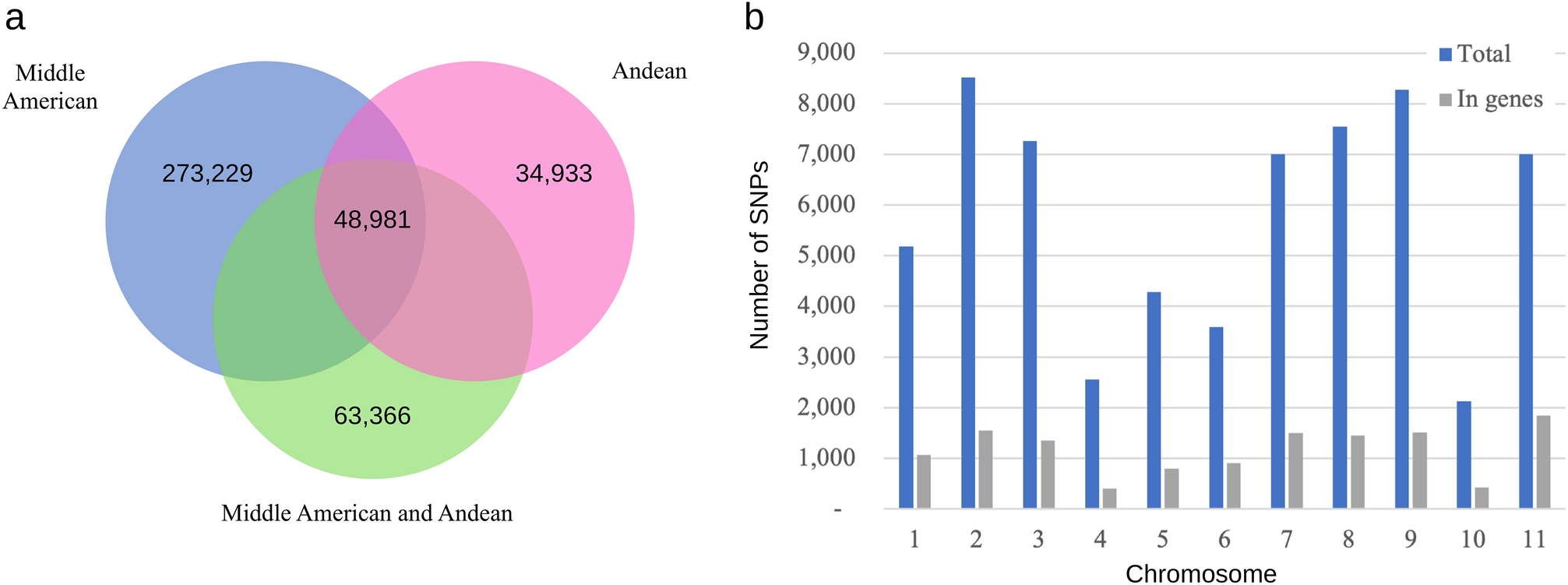

Genetic differentiation between Andean and Middle American gene pools. (a) Venn diagram of the set of SNPs from the Andean and Middle American groups produced in JVENN (http://jvenn.toulouse.inra.fr). (b) Total number of differentiating SNPs on each of the 11 common bean chromosome and number of differentiating SNPs located within genes produced in R v.4.1.1.
