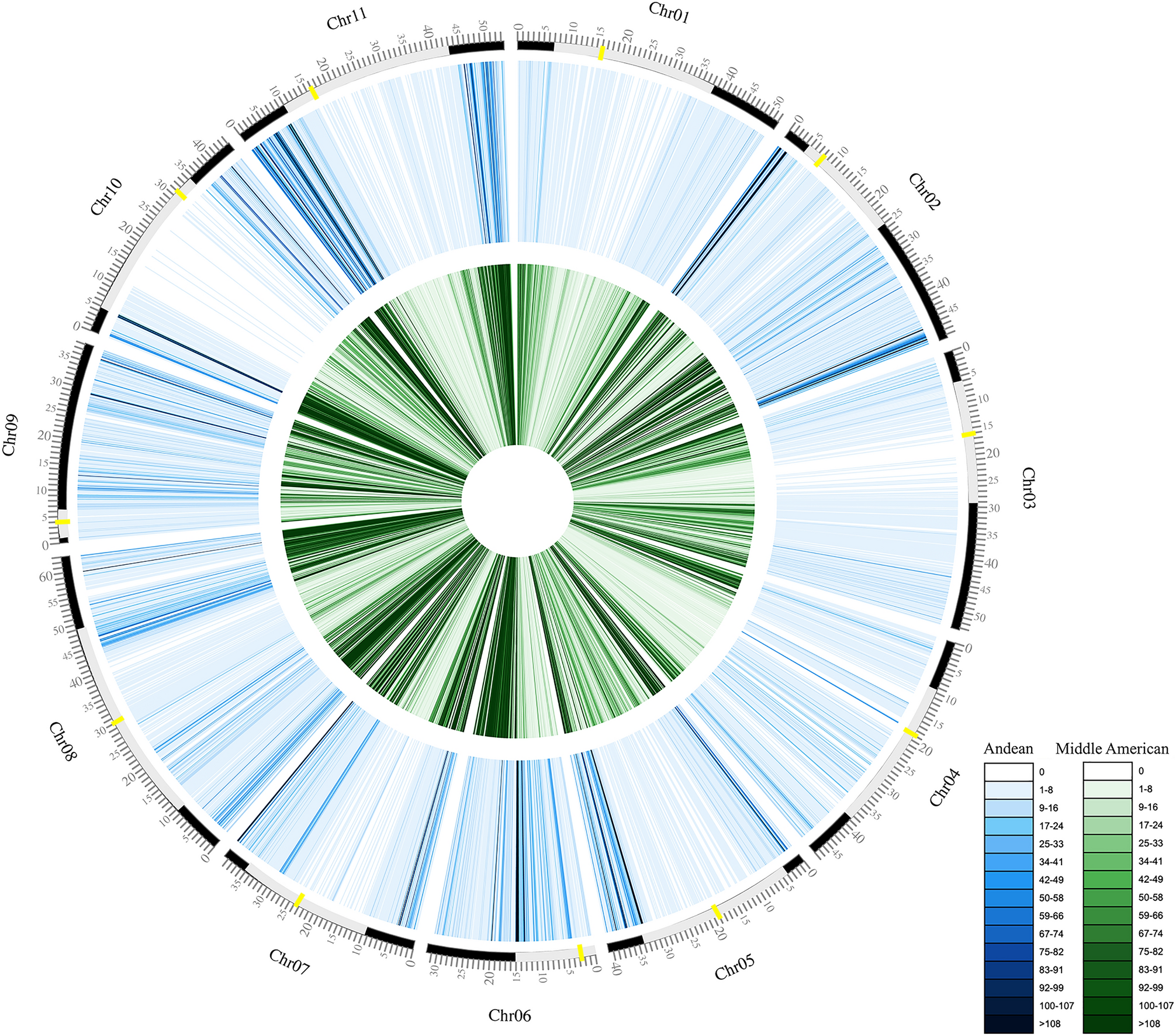

Figure 4
From: Whole-genome resequencing of common bean elite breeding lines
Density of exclusive SNPs detected for each of the 11 chromosome of Andean and Middle American accessions represented by the two rings. Yellow bars represent centromeric regions, and gray bars pericentromeric regions. Each vertical line represents bins of 100 kb. The colors scale is represented on the figure legend. Figure produced in CircosVCF (available at: https://legolas.ariel.ac.il/~tools/CircosVCF/).
