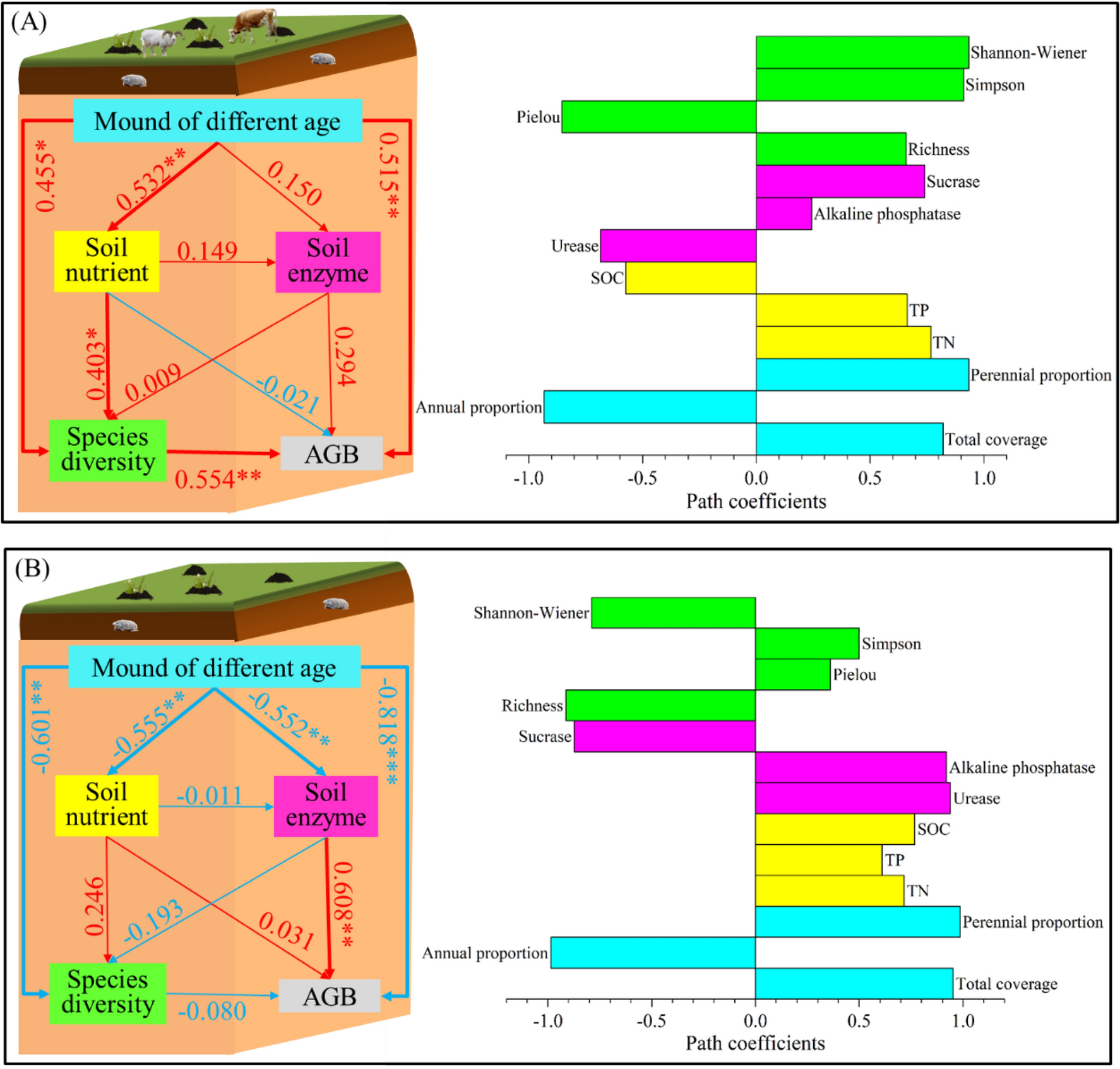

Figure 7
Partial least squares path modeling (PLS-PM) was used to analyze the direct and indirect effects of mound age on plant AGB at the grazing (A) and non-grazing (B) sites. AGB, TN, TP, and SOC represent plant aboveground biomass, soil total nitrogen, soil total phosphorus, and soil organic carbon, respectively. The red and blue lines indicate positive and negative influences, respectively. The width of the line represents the significance level. Numbers represent standardized path coefficients; *, **, and *** represent P < 0.05, P < 0.01, and P < 0.001, respectively.
