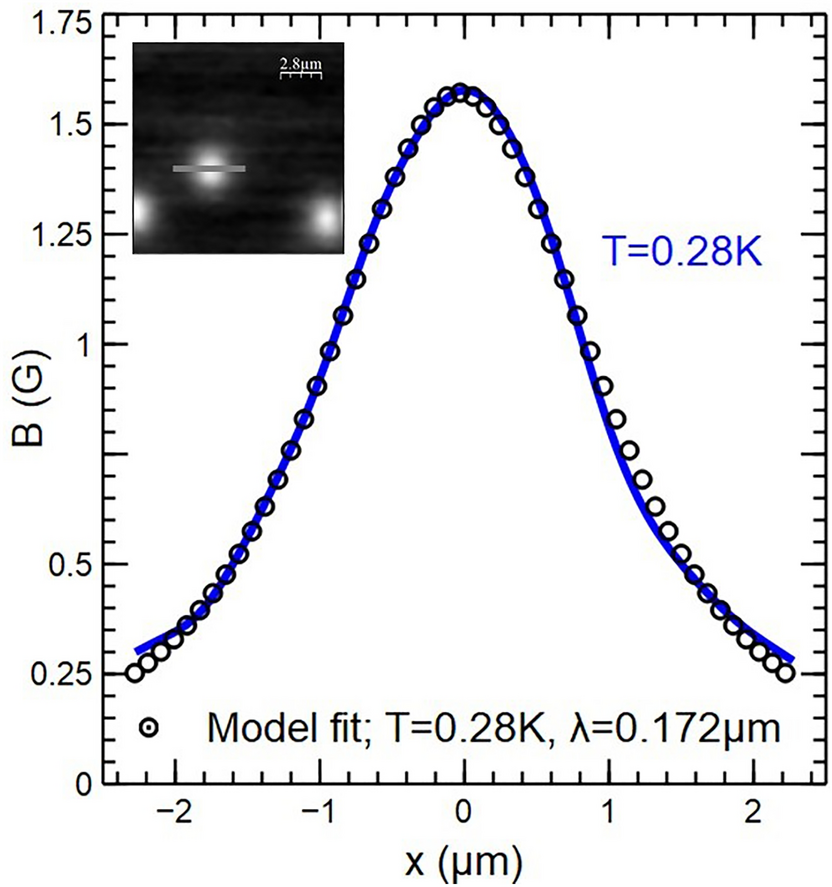

Figure 9
Measured vortex profile at T = 0.28 K (solid line) and a fit to a modified Clem model (circles). The profile has been measured along the line indicated in the T = 0.28 K SHM image (14 µm × 14 µm) shown in the inset.
