Figure 1

From: A new approach for simulating inhomogeneous chemical kinetics

Figure 1

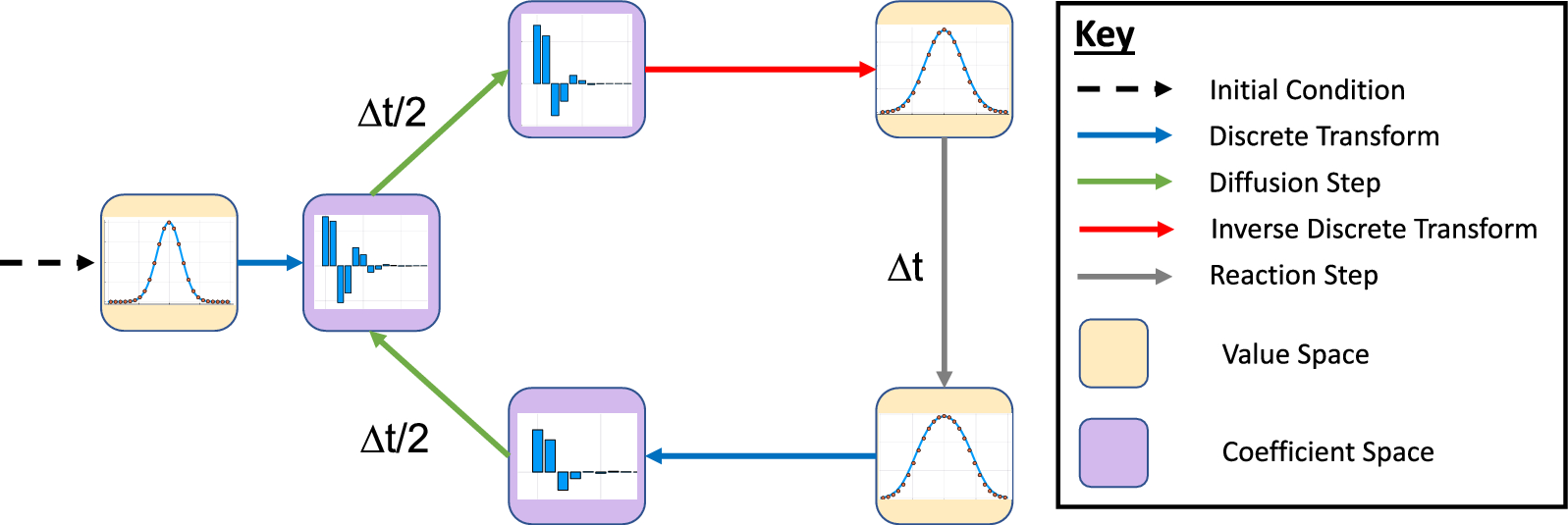

Flow chart showing order of processes for a single iteration of the Strang split-step method60. One loop represents a single complete timestep of length \(\Delta t\) for the reaction-diffusion equation (two diffusion steps of length \(\Delta t/2\) and one reaction step of length \(\Delta t\)). The graphs in each box are a schematic to represent whether the concentrations are stored as values or coefficients at that point in the process.
